๐Ÿš€ Build Your Own Steemit Interface with SteemJS ๐Ÿš€

in programming โ€ขย  9 months ago

Learn how to code the steemit website in HTML, CSS and JS and post blog articles using your own website


(image source)

Coding time

Today I want to show you how you can build your own steemit interface to post articles to your blog. You don't have to use steemit.com to post. You can build your own personalized blogging website and connect to the blockchain to post your article. With the help of the steem-js library there is an easy way to implement this.

If you are familiar with HTML, CSS and Javascript you should be able to follow along. If not, you can still use the play around code by downloading my code files.

Building the Website (HTML)

To start of let's rebuild the steemit.com posting interface in HTML.

<html>
<head>
<title>My Steemit Interface</title>
</head>
<body>
<h1>My Personal Steemit Interface</h1>
<div class="text-info">
Title of article:<br><input cols="110" id="title" type="text" ><br/>
Article text:<br><textarea  id="article"></textarea><br/>
</div>
<div class="credentials">
Username: <input id="username" type="text" ><br/>
Private Posting Key: <input id="postingKey" type="password" size="65" ><br/>
<input id="postIt" type="button" value="Post it!" onClick=postArticle()>
</div>
</body>
</html>

I think it's pretty readable. We have named out website with a title element in the head. Then we created a two components: The "text-info" and the "credentials" components. We placed them inside <div> tags and marked them with classes. The "text-info" component contains 2 input fields, one for the article title and one for the article text. The second component is for the login data, holding input fields for your username and password.

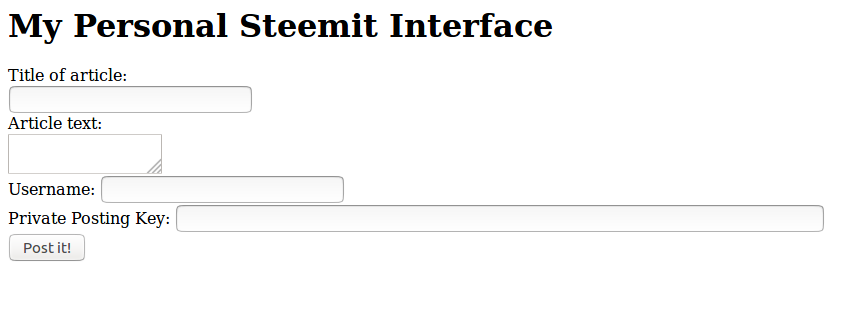

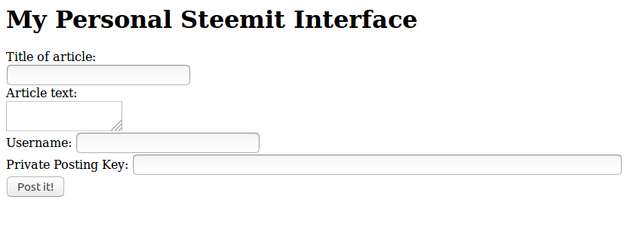

The Result:



Let's clean it up a little by changing field sizes and adding placeholders.

Article text:</br></textarea rows="20" cols="90" id="article"><//textarea></br/>
Username: </input id="username" type="text" placeholder="Steemit username without '@'"></br/>
Private Posting Key: </input id="postingKey" type="password" size="65" placeholder="Your secret postingkey"></br/>

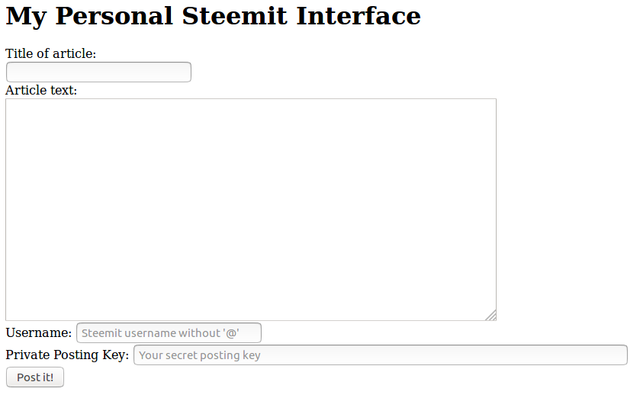

Looks better already.

Write this file in your favorite code editor and save it with a *.html extension.

Learn more about HTML

Giving it Style (CSS)

Now let's apply some CSS. This language expands HTML and is purely designed to transform raw HTML pages into something beautiful. Our HTML tags let us grab each element and give it some stying. I feel like blue and green colors today, so I will use those.

Create a new file and save it as styling.css

body {
background-color: #ccf2ff; /*Interface color: Lightblue*/
}
#title{
  margin: 10 0 10 0px;
}
h1 {
    color: #006622; /*Title color: Darkgreen*/
    padding: 20px 0 0 160px;
    margin-top: 40px;
    margin: auto;
    width: 50%;
    margin-bottom: 40px;
}
input {
  width: 98%;
  padding: 1%;
}
.text-info{
  margin: auto;
  width: 50%;
  border: 3px solid green; /*Bottom box color: Green*/
  padding: 10px;
  margin-bottom: 40px;
}
.credentials{
  margin: auto;
  width: 50%;
  border: 3px solid green; /*Bottom box color: Green*/
  padding: 10px;
}
#postingKey{
margin-bottom: 15px;
}
#postIt{
    background-color: #00802b; /*Button color: Green*/
    border: none;
    color: white;
    padding: 15px 32px;
    text-align: center;
    text-decoration: none;
    display: inline-block;
    font-size: 20px;
}

Good time to referesh some CSS:

h1 //to target a tag
.some-class //to target a class
#my-id //to target an id

The *margin: auto; width: 50%;* a neat way to align elements. The rest is coloring in and giving the elements some padding and margin so it doesn't get too cluttered. The border on the two components gives a neat look.

Place the css-file in the same directory and point the HTML file to it.

<link rel="stylesheet" href="styling.css"><

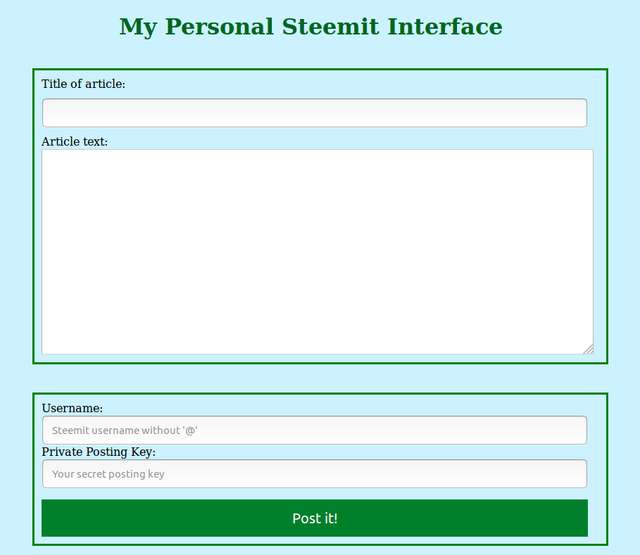

Let's have a look at the result:


Do you like it? Feel free to download my scripts and play around with the format and colors until you get your own personalized interface that you are happy with :)

Learn more about CSS

Adding Javascript magic (JS)

We have an interface, but it's not able to post to the blockchain yet. Now we add some javascript magic to enable a connection to a public STEEM node.

We can use the steem.broadcast.comment() from the steem-js library to post our article. The blockchain does not discriminate between an article an a comment. Therefore, both are implemented via the same function.

To grab the libray from the cloud (Content Delivery Network) we can use this:

<script src="https://cdn.steemjs.com/lib/latest/steem.min.js"></script>

The script:
<script language="JavaScript"<
function postArticle()
 {
  steem.broadcast.comment(
    document.getElementById('postingKey').value, // posting wif
    '', // author, leave blank for new post
    'steemtest', // first tag
    document.getElementById('username').value, // username
    'name-of-my-test-article-post', // permlink
    document.getElementById('title').value, // Title
    document.getElementById('article').value, // Body of post
    // json metadata (additional tags, app name, etc)
    { tags: ['test'], app: 'steemjs-test!' },
    function (err, result) {
      if (err)
        alert('Failure! ' + err);
      else
        alert('Success!');
    } );
}
</script>


We use the document.getElementById() function to extract the values out of out HTML form. These are the arguments we need for the steem-js steem.broadcast.comment() function. The first and second tags are set manually. Lastly we catch an error function and notify successful post to the blockchain.

We can insert the javascript directly into the HTML file.

Learn more about Javascript

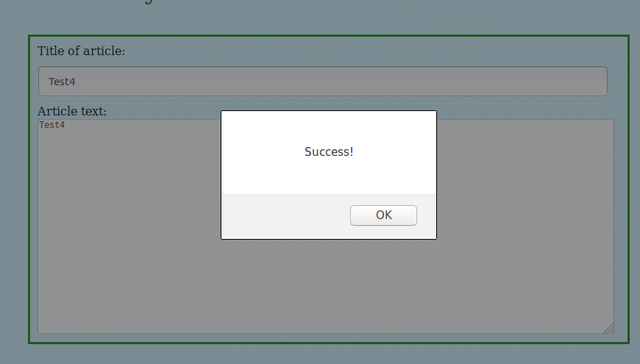

Let's fire up this bad boy

Fill out the Title, Article with the text you want to post. Then enter your username without the '@' with your private posting key. Hit 'post' and let the magic work!


I tested it out and successfully submitted a post using this interface. We have a working Steemit interface now that looks even better than the steemit.com one.

Private Posting key? Is this how I'm going to loose my account?

Fear not, dear reader. The Javascript is executed client-side on your machine. The code used here can be read upon here and in my github repo. There is no proprietary Javascript. The Steem-js library can be inspected on github here. Besides, the posting key grants permission to post via ones account but not do any transfers or claim ownership of it.

Want to try this out? Here are useful links!

Check out the steem-js library: https://github.com/steemit/steem-js

If you want to try these scripts out, the easiest way would be to clone my github repo: Steemit-Interface on github

Feel free to try this at home and if you get stuck you can always ping me.

I've had some trouble posting HTML and Javascipt in markdown on steemit in this article, therefore there maybe format errors in the code. Please use the github version instead.
Images: All images used are screenshots made by me.


Thank you for stopping by. If you like my my blog you are welcome to follow me. แ•ฆ(รฒ_รณห‡)แ•ค
- Niko ( @cryptonik ) -
