BLUE WATER AS-BUILT PLAN

Hey Steemians i just want to share my project in Blue Water Resort. My project is As-built plan of Sanitary line and Water line. What is As-built plan ? Asbuilt plan is a revised set of drawing submitted by a contractor upon completion of a project or a particular job. They reflect all changes made in the specifications and working drawings during the construction process, and show the exact dimensions, geometry, and location of all elements of the work completed under the contract.

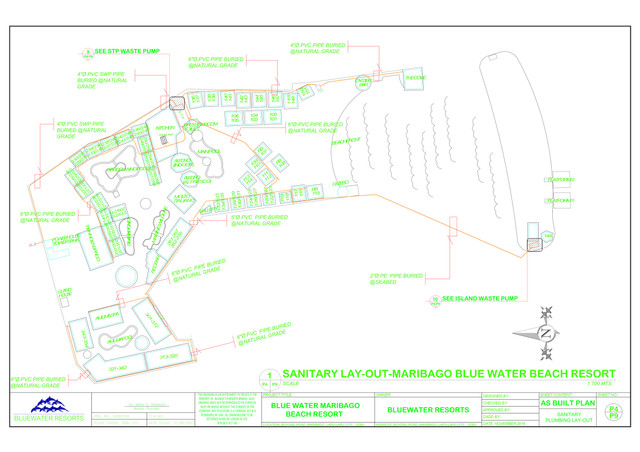

And this is the sanitary line of Blue Water Resort. What is Sanitary ? The sanitary sewer is a system of underground pipes that carries sewage from bathrooms, sinks, kitchens, and other plumbing components to a wastewater treatment plant where it is filtered, treated and discharged. The storm sewer is a system designed to carry rainfall runoff and other drainage.

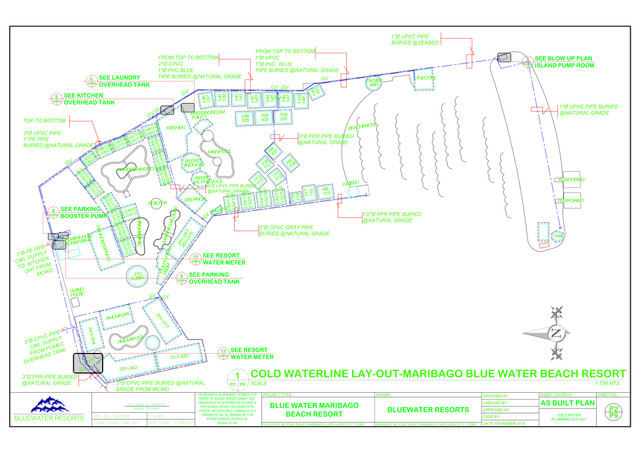

This is the Cold Waterline as-built of the resort. Cold water supply system & Components. Refers to a system of pipes and fixtures installed in a building for the distribution of potable water and the removal of waterborne wastes.

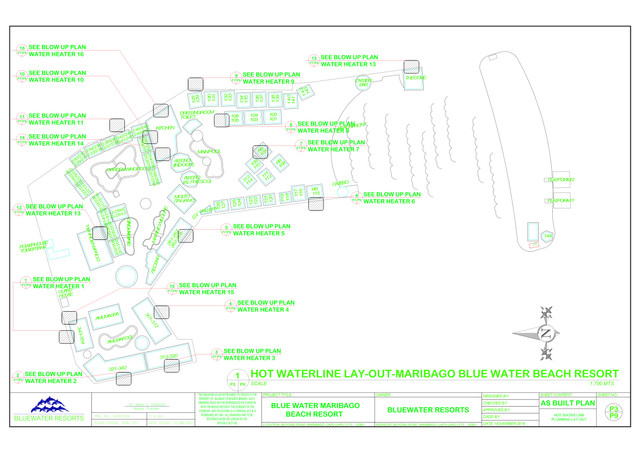

And this is the waterheater or heating elements. water heater is an apparatus for heating and usually storing hot water. As you observe there is an square and a hatch this are the location of the water heater to supply the rooms.

This is the beauty of BLUE WATER RESORT lapu-lapu. Blue water resort located in Maribago lapu-lapu City Cebu
