The Opensource JOULESTEEM Circuit – Post #91

A Charger-Only Circuit

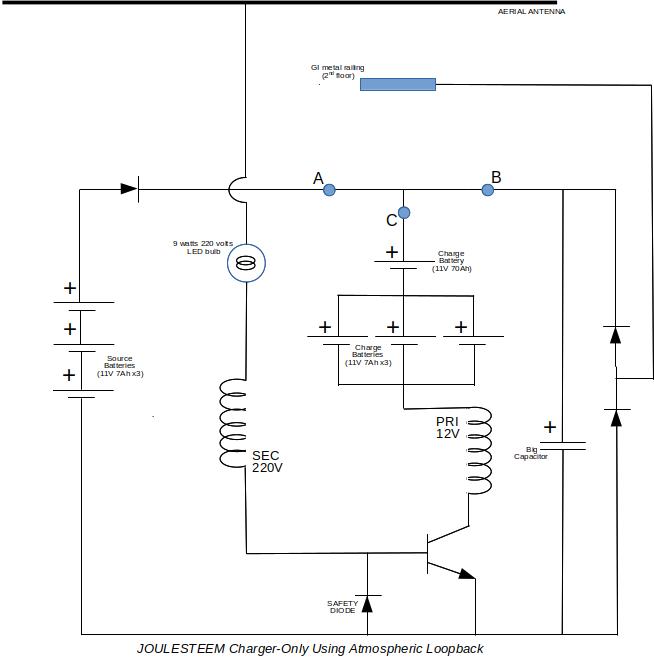

A charger-only variant of the latest JOULESTEEM circuit was tested and I can attest to it being the most efficient arrangement I have ever tried. Circuit below:


This post is also to announce the availability of the book that I published at Amazon to describe my approach in harnessing Atmospheric Energy, url below:

KINDLE link: https://www.amazon.com/dp/B07HR5G4PB

PAPERBACK link: https://www.amazon.com/dp/1724114859

Please support this initiative as I embark on exposing this type of alternative energy for the benefit of everyone. Those who are willing to support can donate thru my bitcoin wallet here:

“1Bcdfnvr1cQowMBPwnUx9UDN78mBCS6yzT”

A Charger Is Always Best For Multi-purpose Use

A charger for batteries is always best in my opinion because we will have the option to use whatever we like for the batteries being charged. Lighting, heating, low-power appliances, anything that we find useful in our day to day living.

Connect the fully charged batteries into an inverter (DC input, AC output), and any appliance within the power range of the said inverter can be run smoothly.

Some Descriptions And Improvement Suggestions

What is most interesting in this latest charger circuit is that it “clearly” charges the huge 70 Ah batteries in series (24 volts total) with just 1x antenna and transistor combination.

Going further and I the context of the JOULESTEEM circuit approach of battery swapping to obtain a very long-running circuit, if we replace one of the 70 Ah huge battery with 3x parallel connected 7Ah small batteries, it will be very clear that this charger will surely run for a very, very long time as it charges huge batteries.

Consider the circuit below:


Node AC currents are as follows:

Node A equals 60 milliamps (.06 Amperes)
Node B equals 450 milliamps (.45 Amperes)
Node C equals 550 milliamps (.55 Amperes)

What these current readings mean is that for every 1x unit of energy “drained” from the source batteries, 7x units of energy is “produced” thru the CAP. It really seems that the efficiency of this arrangement is about 700 percent.

But again, I may be wrong.

If we want to have more power from this arrangement, all we need to do is increase the number of antennas and transistors.

Go ahead and replicate. Tell the whole world what you found out.


“Use A Little Gain So Much; Coffee Does This To Me Everyday……...”
