Designing a Toroidal Spring with SelfCAD

How to Design a Toroidal Spring with SelfCAD

Welcome to this comprehensive tutorial on designing a toroidal spring using SelfCAD! SelfCAD is a powerful and user-friendly online CAD that empowers both beginners and experienced designers to bring their ideas to life. In this tutorial, we will guide you through the process of creating a toroidal spring, exploring the essential tools and features SelfCAD provides for precise and efficient design.
The interactive tutorial for this article can be accessed at https://www.selfcad.com/tutorials/1w6e5l5a3472r4n3ao4f4h233y5m1z50122b
https://www.youtube.com/@SelfCAD

Once you’ve launched the Editor;

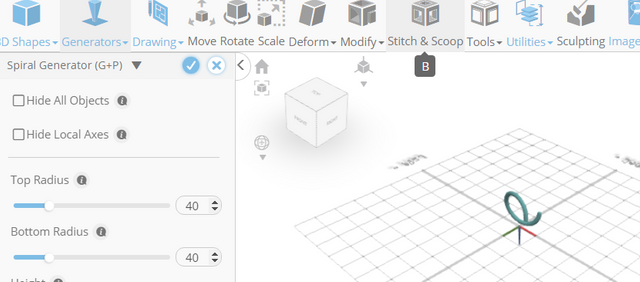

From the Generators Category on the Toolbar choose Spiral Generator
Set Edges to 10, Rotation x to 90

Click to finalize Spiral Generator

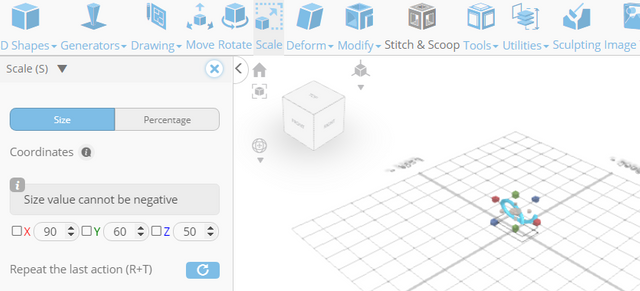

Click Scale on the Toolbar. Set Keep Proportion to True. Set y to 60

Click ‘x’ to close Transformation panel

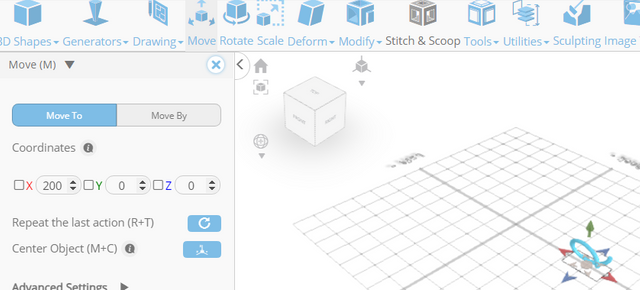

Click Move on the Toolbar. Set y to 0. Set x to 200

Click ‘x’ to close Transformation panel

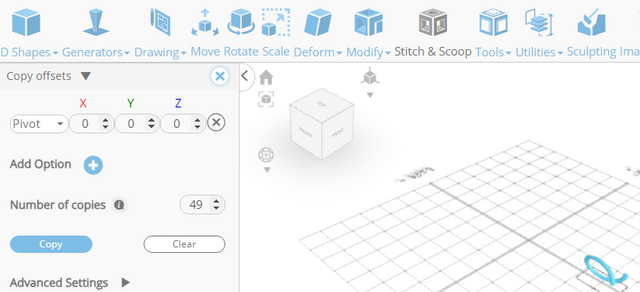

From the Tools category on the Toolbar choose Copy Offsets.Set Operation to Pivot. Set Amount of Copies to 49

Click Copy button to create copies. Click ‘x’ to close copy offsets panel

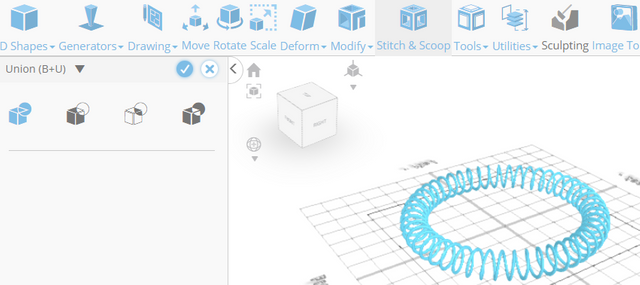

Click Stitch & Scoop on the Toolbar. From the Tool panel choose Union

Click to finalize Union

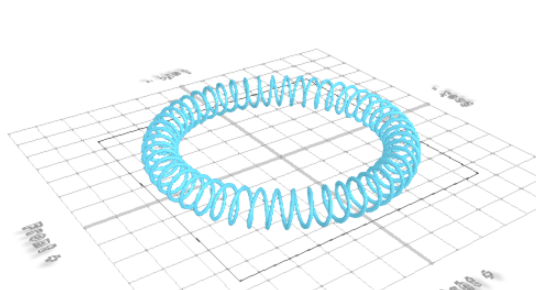

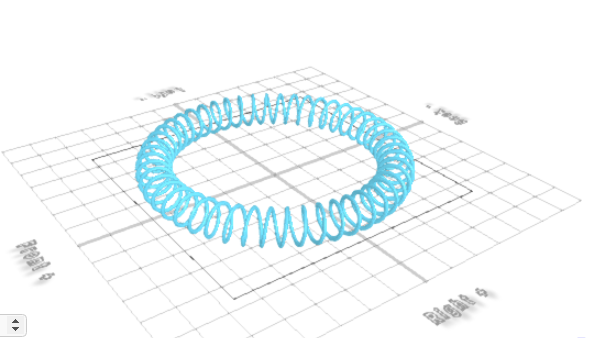

Complete!
