simulink system about matlab

Maximum of the people write down the MATLAB code but some they don't know how to SIMULINK works. today i show you how you can find out the all materials or tools. i think this photos help to your work system about MATLAB.

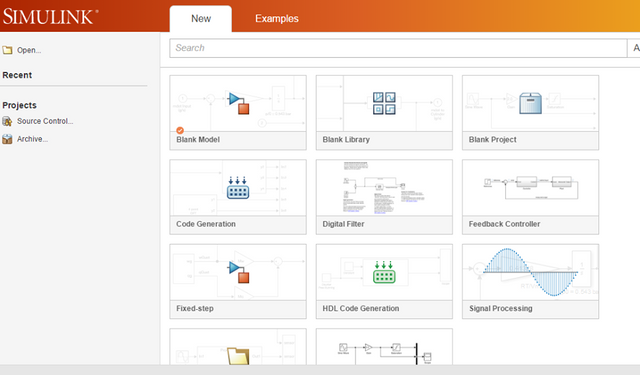

first of all go to the the simulink. than you see the this page.

open the signal processing because simulink all the tools give here.

open this (this file name is library browser )

see the left side (in this side you see the all things like robotic, integration, differentiation, 2 phase-3 phase transmitter , generator etc)

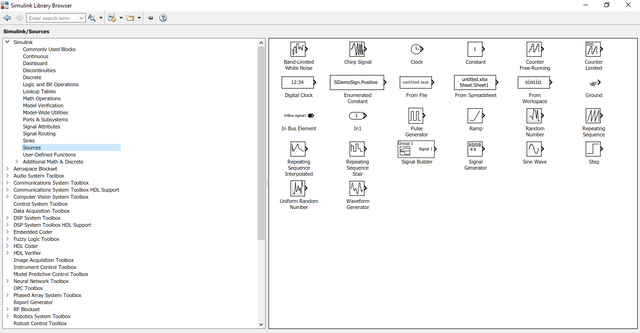

i give you one example ...i select the source and open it than you see that.

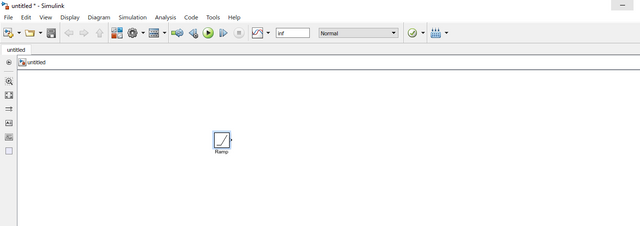

see the right side (if you want to any function just right click the muse and select the (add block to model untitled) than you see this page)

same to same select the function ,what you want . than connect the circuit and click the run button. finally you find out the result and also your goal.
