Math art #4: The colors of π

in mathematics •  5 months ago

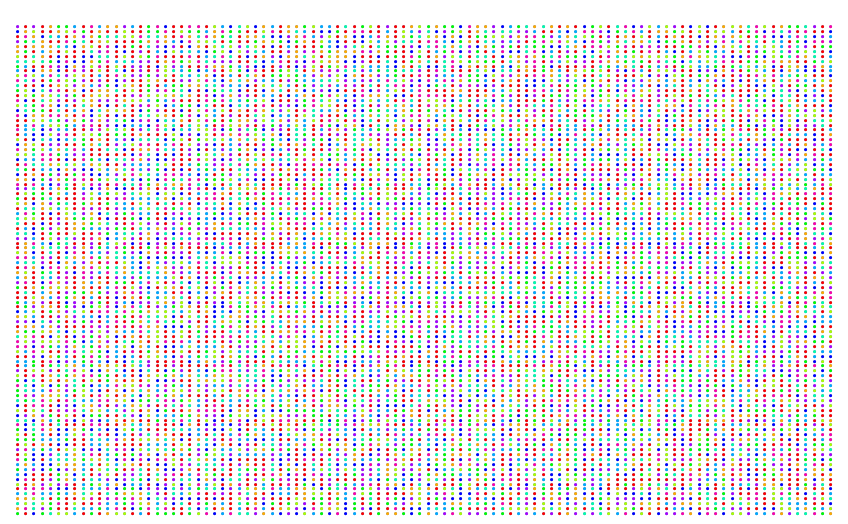

We all know that we can visualise π as half the circumference of a circle of radius one. But there are more cooler ways to to visualise π. Yesterday I made a program which represents the first 10000 decimals of π as a bunch of colourful dots:



In this post I will explain how this figure was generated and what kind of meaning you can derive from it.

Coloring decimals


The main idea of the program is represting decimals of π as colors. Let's make this more specific.

For now let's just consider two decimals after the dot. So the approximation of of π is given by 3.14. For each decimal I will draw a dot on a vertical line. So in the case of 3.14 I am going to draw three dots, see the picture on the left.




In the above picture on the left I also indicated to which number each dot is connected. I will color these dots using the colourful rules in the list on the left. So then the figure with the three black dots becomes the figure on the right.

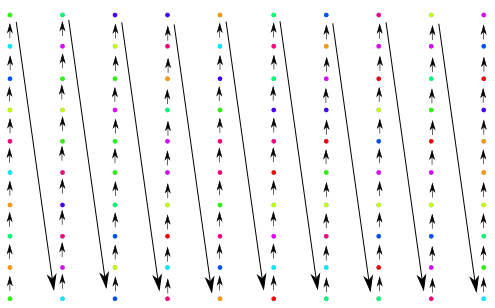

If I would consider lots of decimals of π and arrange them in a straight line then I won't get something pretty. So after a certain number of dots (or equivalently a number of decimals) I will continue with a new column of colourful dots. The arrows in the picture below indicate where I position the coloured dots corresponding next (higher) decimal:



The coloured dots above correspond to the first 100 decimals of π

Let's try another number!

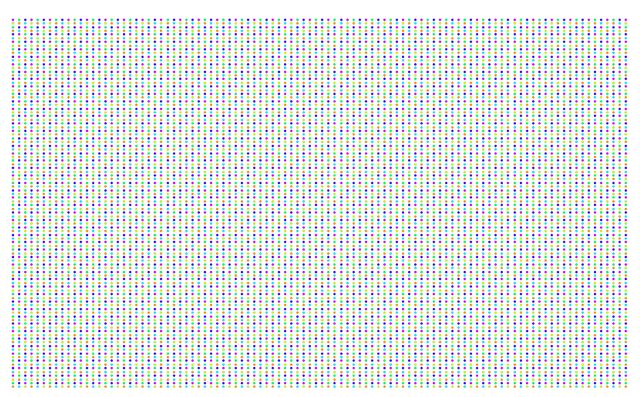

If you would apply this colouring method to a whole number then at some point you will only see one color. For example, for the number 1 all the decimals after the decimal separator are zero; zero corresponds to one color, so eventually you will only see one color. So not very cool. A much cooler number would be 1/7 since its decimals are governed by a repeating pattern: 0.142857142857142857... If you would use the same dot colouring technique then you would get the following picture for the first 10000 decimals:


So you can really see a clear pattern!

The number 1 of course also satisfies a type of pattern since the decimals after the decimal separator are all zero. Numbers which after a given decimal satisfy a pattern are called rational numbers. Numbers which are not rational numbers are called irrational numbers. For irrational numbers there is no pattern present in the decimals. For a more formal definition of rational and irrational numbers you can click here and here [1][2].

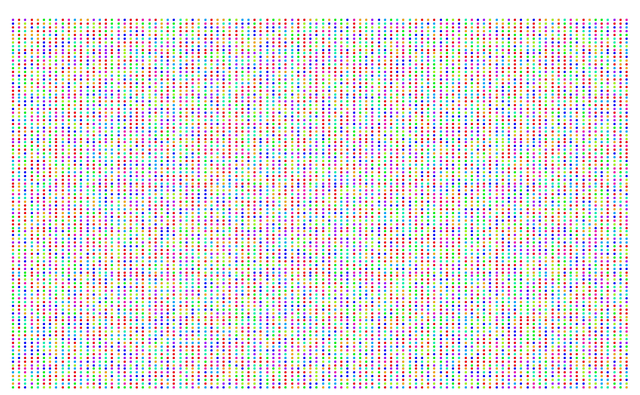

Back to the top π figure

Let's go back to the first picture. It indicates that there is no pattern in the first 10 000 decimals of π. So the first 10 000 decimals suggest that π is irrational. The figure does not prove that π is an irrational number since only 10 000 decimals were considered. But it is not too hard to prove that π is an irrational number using basic calculus, see [3] for an easy proof. However, the proof is not as pretty as this post since it does not contain any pretty pictures :)

References

[1] Wolfram - Irrational numbers
[2] Wolfram - Rational numbers
[3] I. Niven, A simple proof that π is irrational, Bull. Amer. Math. Soc. Volume 53, Number 6 (1947), 509.


Pictures/Figures: Everything made with Inkscape (which is a free open source graphics program) and mathematica code. Let me know if you want my notebooks :)
