Making Raspberry powered BMO computer
I had some old raspberry pi boards and someday I started to think of some applications for them.
What I was doing with them are gaming(Retropie), media center(kodi), or several different diy projects.
The first goal of the project was integration of all the applications working on my raspberry pi. And use it everyday on my desk.
I decided to integrate them into one system(That doesn't need any external input device like keyboard and mouse for the ordinary use). It seems like Retropie could be the solution that is suitable for the project goal. It is a system built on many different types of single board computers and it has really great UI frontend called emulation station. and I can add many application like KODI on it.
For the everyday use, nice look of the machine became another project goal. After researching a nice-looking cases (commercial, opensources, and so on.) I decided to design and make my own. In the animation series "Adventure time" there is a character called BMO (it is a game machine which walk, talk, play games and do many things in the movie.) The character I decide to make looks so funny and it would be a good model of my project.

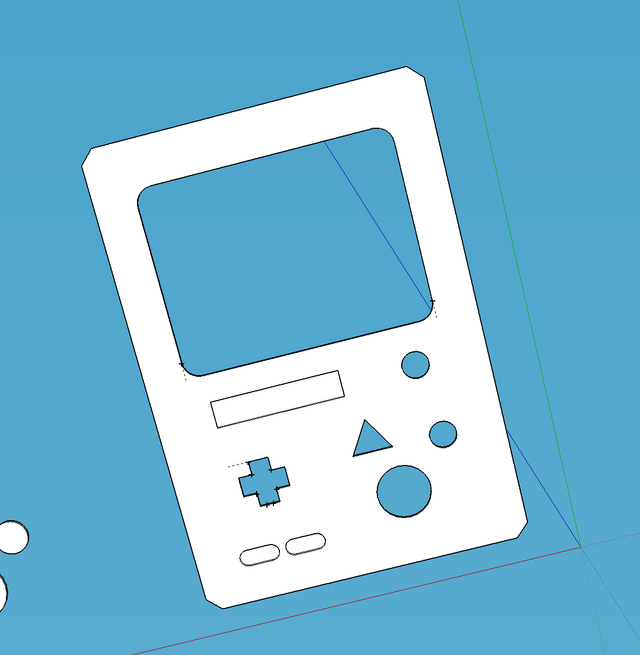

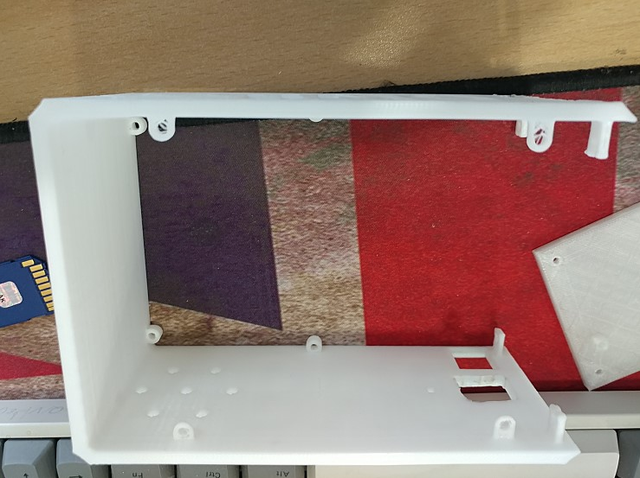

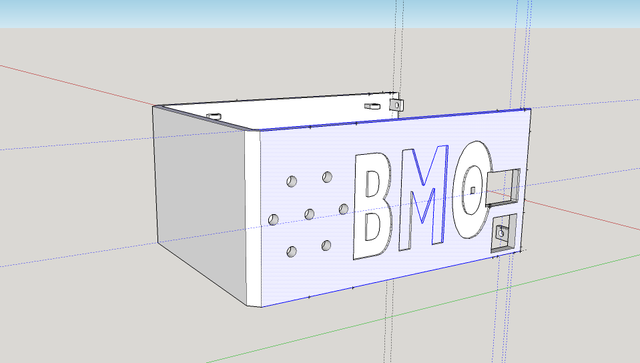

So I started to design BMO shaped case with free software "Sketch up". And start 3D printing.

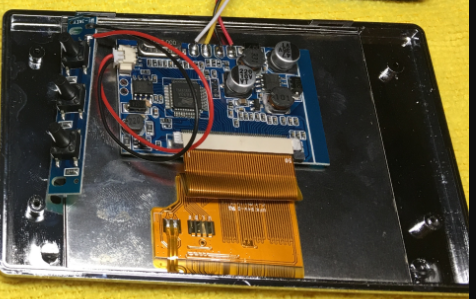

While designing the machine, I thought it would be nicer if it has the screen. So I started to find a screen to be attached on my machine and I found a good solution for the car application that has video signal input.
I detached the screen from the device I purchased from Aliexpress and start re-designing the front panel of my device . Fortunately, the size of the screen really fits on my machine.

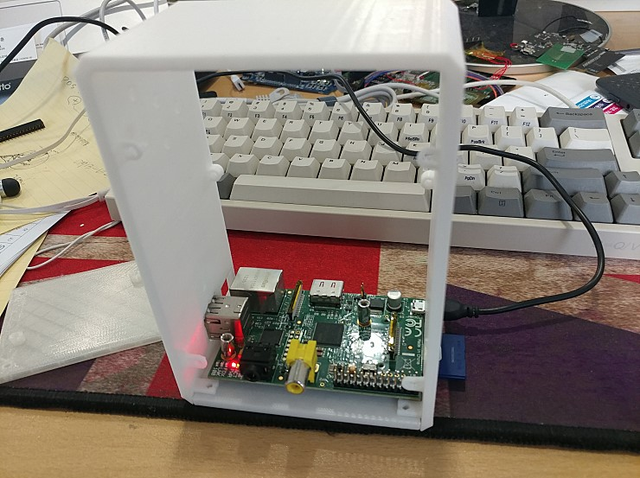

After finishing painting all the 3D printed parts, the next job was assembling all parts into one device. Raspberry pi is working with 5V DC input. But the car monitor is working with 12V DC usually supplied by cars. So I had to order some parts to transform the voltage. and also some speaker and audio amplifier is attached on the device. To minimize soldering, I designed the product with some commercial breakout boards. (Parts list would be described below.)
Finally I got the working BMO, that has game machine and media player inside it.
It is working with the playstation controller I had. and I am still working on adding voice recognition feature on it using external microphone and google voice engine. By binding voice engine and HID interface. I believe I can make the device working with voice command set. All the progress I am working on is being recorded on thingiverse, too. please see the working video below and check the thingiverse link if you are interested in.
