Transacting users before HF20 vs after.

To gain some insights on the impact of HF20 on access to the STEEM blockchain, I ran a little script that looked at one simple metric: The number of unique transacting accounts per hour of the day. To get a usefull insights I rewinded to a few days before the hard fork untill just before the moment I made this post. I'll share my script below, but first, here is the data.
Let us first look what two normal days look like:

Date	From	Till	Transacting users
2018-09-23	0:00	1:00	13398
	1:00	2:00	14807
	2:00	3:00	12984
	3:00	4:00	12781
	4:00	5:00	11569
	5:00	6:00	14502
	6:00	7:00	14645
	7:00	8:00	14012
	8:00	9:00	13098
	9:00	10:00	13349
	10:00	11:00	15252
	11:00	12:00	13588
	12:00	13:00	17553
	13:00	14:00	16040
	14:00	15:00	15115
	15:00	16:00	17483
	16:00	17:00	15255
	17:00	18:00	16414
	18:00	19:00	17095
	19:00	20:00	16090
	20:00	21:00	15258
	21:00	22:00	15101
	22:00	23:00	12428
	23:00	24:00	13247
2018-09-24	0:00	1:00	13287
	1:00	2:00	13338
	2:00	3:00	13619
	3:00	4:00	14070
	4:00	5:00	14289
	5:00	6:00	13608
	6:00	7:00	13756
	7:00	8:00	16027
	8:00	9:00	12244
	9:00	10:00	17003
	10:00	11:00	15512
	11:00	12:00	15231
	12:00	13:00	17231
	13:00	14:00	15986
	14:00	15:00	15101
	15:00	16:00	17626
	16:00	17:00	16788
	17:00	18:00	17124
	18:00	19:00	17918
	19:00	20:00	15851
	20:00	21:00	18640
	21:00	22:00	16303
	22:00	23:00	12480
	23:00	24:00	14577

And now two days with HF20 in it. Remember, HF20 was supposed to activate at 15:00 on the 25th.

Date	From	Till	Transacting users
2018-09-25	0:00	1:00	14633
	1:00	2:00	13038
	2:00	3:00	12497
	3:00	4:00	12908
	4:00	5:00	13970
	5:00	6:00	14156
	6:00	7:00	13635
	7:00	8:00	14027
	8:00	9:00	13483
	9:00	10:00	15537
	10:00	11:00	14755
	11:00	12:00	15216
	12:00	13:00	15931
	13:00	14:00	18746
	14:00	15:00	18782
	15:00	16:00	635
	16:00	17:00	92
	17:00	18:00	74
	18:00	19:00	79
	19:00	20:00	56
	20:00	21:00	51
	21:00	22:00	59
	22:00	23:00	83
	23:00	24:00	45
2018-09-26	0:00	1:00	65
	1:00	2:00	44
	2:00	3:00	48
	3:00	4:00	91
	4:00	5:00	41
	5:00	6:00	43
	6:00	7:00	118
	7:00	8:00	157
	8:00	9:00	130
	9:00	10:00	136
	10:00	11:00	99
	11:00	12:00	72
	12:00	13:00	107
	13:00	14:00	87
	14:00	15:00	118
	15:00	16:00	5061
	16:00	17:00	6670
	17:00	18:00	4207
	18:00	19:00	4020
	19:00	20:00	2819
	20:00	21:00	2372
	21:00	22:00
	22:00	23:00
	23:00	24:00

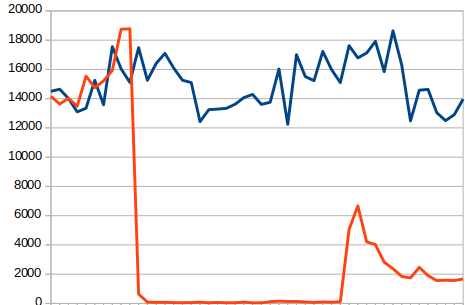

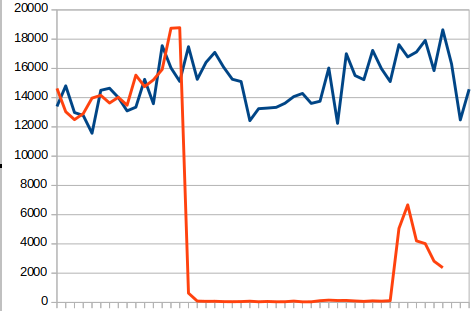

Most if obvious from the tables, but let us look at it in a little graph:

The above data was gathered using the below asyncsteem script.

#!/usr/bin/python
from twisted.internet import reactor, endpoints
from twisted.logger import Logger, textFileLogObserver
from asyncsteem import ActiveBlockChain

class CommentStream:
    def __init__(self):
        self.accounts = set()
    def _account(self,account):
        self.accounts.add(account)
    def hour(self,tm,event,client):
        print tm,len(self.accounts)
        self.accounts = set()
    def account_create(self,tm,event,client):
        self._account(event["creator"])
    def account_create_with_delegation(self,tm,event,client):
        self._account(event["creator"])
    def account_update(self,tm,event,client):
        self._account(event["account"])
    def account_witness_proxy(self,tm,event,client):
        self._account(event["account"])
    def account_witness_vote(self,tm,event,client):
        self._account(event["account"])
    def cancel_transfer_from_savings(self,tm,event,client):
        self._account(event["from"])
    def change_recovery_account(self,tm,event,client):
        self._account(event["account_to_recover"])
    def claim_reward_balance(self,tm,event,client):
        self._account(event["account"])
    def comment_options(self,tm,event,client):
        self._account(event["author"])
    def comment(self,tm,event,client):
        self._account(event["author"])
    def decline_voting_rights(self,tm,event,client):
        self._account(event["account"])
    def delegate_vesting_shares(self,tm,event,client):
        self._account(event["delegator"])
    def delete_comment(self,tm,event,client):
        self._account(event["author"])
    def feed_publish(self,tm,event,client):
        self._account(event["publisher"])
    def limit_order_cancel(self,tm,event,client):
        self._account(event["owner"])
    def limit_order_create(self,tm,event,client):
        self._account(event["owner"])
    def recover_account(self,tm,event,client):
        self._account(event["account_to_recover"])
    def request_account_recovery(self,tm,event,client):
        self._account(event["account_to_recover"])
    def transfer_from_savings(self,tm,event,client):
        self._account(event["from"])
    def transfer(self,tm,event,client):
        self._account(event["from"])
    def transfer_to_savings(self,tm,event,client):
        self._account(event["from"])
    def transfer_to_vesting(self,tm,event,client):
        self._account(event["from"])
    def vote(self,tm,event,client):
        self._account(event["voter"])
    def withdraw_vesting(self,tm,event,client):
        self._account(event["account"])
    def witness_update(self,tm,event,client):
        self._account(event["owner"])

mypath = dirname(realpath(__file__))
observer = textFileLogObserver(io.open(join(mypath,"hf20.log"), "a"))
logger = Logger(observer=observer,namespace="asyncsteem")
blockchain = ActiveBlockChain(reactor,log=logger,nodelist="default",rewind_days=3)
steembot = CommentStream()
blockchain.register_bot(steembot,"comment_stream")
reactor.run()
