Create your own Arcade quality Fightstick

Create your own Arcade quality fightstick for Streetfighter, Marvel or other fighting games.

Where I live getting your hands on a good quality Fightstick for fighting games such as Streetfighter Or Marvel is not only difficult but can also be quite expensive!

Here is the solution I created:

What you need:

• HORI Fighting Stick Mini 4 for PlayStation 4 and PlayStation 3

• Sanwa Denshi Japan JLF-TP-8YT FAST SHIPPING Green Ball Top Handle Arcade Joystick Part 4 & 8 Way Adjustable - Hori Fight Stick Repair Part - Mad catz SF4 Tournament Joystick Compatible

• 8 Sanwa button (you want Sanwa parts if possible, they are worth the price)

I recommend shopping around although I do believe the first two links were the same as the ones I actually purchased myself.

Step one:

Open up your Hori Fightstick Mini... Yupp that's right... we're gutting this baby for the PCB

Step Two:

Cut the wire band and leave as much length as you can (see the white arrow)

Step Three:

Split and strip the wireband's wires carefully (these are very fragile) solder wires in the order provided

With the wires as shown in the picture provided (from left to right): Ground, L1, L2, R1, R2, circle,triangle, cross,square, up, left, down, right

Step Four:

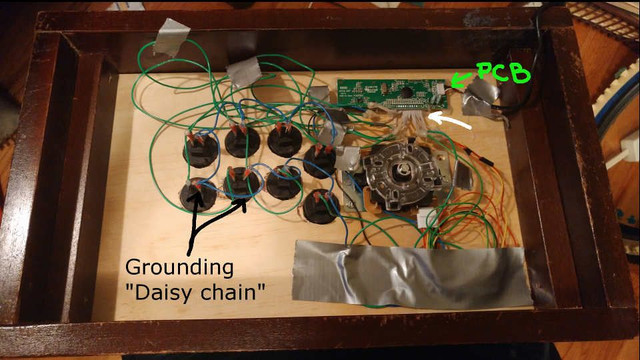

Create a continuous "daisy chain" that touches each button's ground as well as the joysticks ground and brings them all back to the ground provided by the PCB.

Step Five:

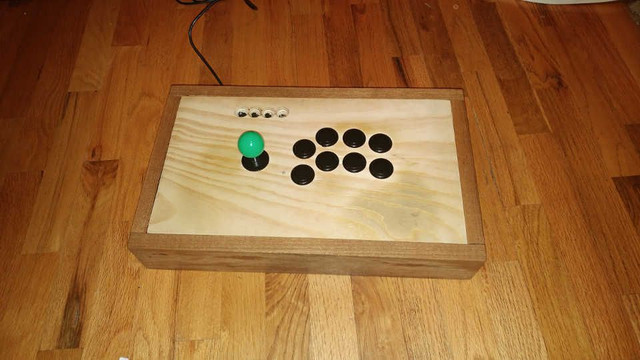

Create your box!!... I have seen these things created in pizza boxes so I will let you use your imagination.

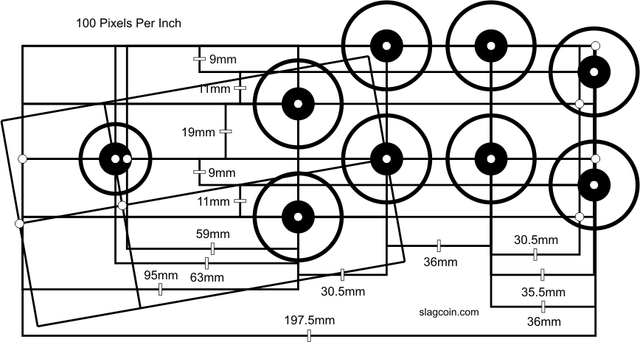

Here us the layout I used

As you can see this Tutorial is just aimed to give you the crucial info you need.

I ended up paying around 150$ in total costs... but when a fight stick is $250-500 (if you can even find one) that price was well worth it

feel free to leave comment with any questions you have, upvote this post and follow my channel for more content

Enjoy,
-J
