TUTORIAL - 3D Modeling in FUSION360. A LED lamp in a few easy steps.
This model is very simple to construct. Just follow these steps.

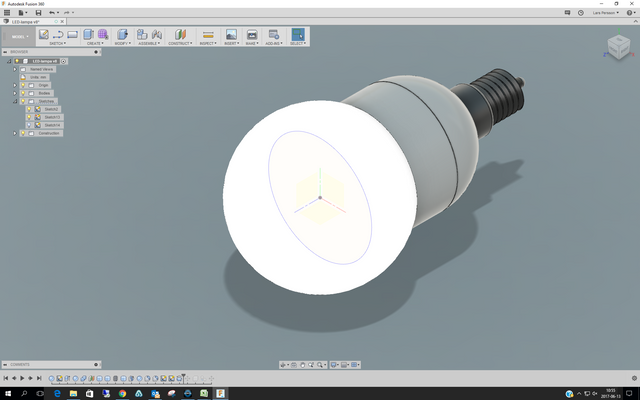

Step1. A sphere.
.png)
Create a sphere primitive. I gave it a 40 mm radius. I also added a physical material to the sphere, a shining led material to create the glow.

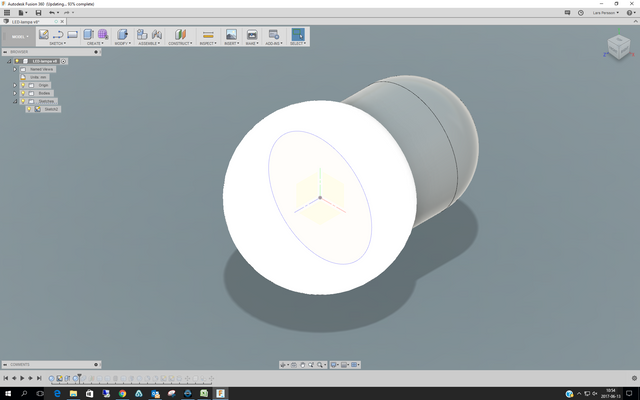

2. Create a sketch and extrude a cylinder out from the sphere
.png)
3. Add another sphere on the end of the cylinder.
.png)
4. Create a sketch and add a new cylinder to this latest sphere.
.png)
5. And another one slightly smaller.
.png)
6. Add a thtread on this lates cylinder.
.png)
7. Add a small cylinder and give it a draft angle, which will create a cone.
.png)
Put a small sphere on the end of the cone and you are done.
I copied the lamp and tilted it slightly to give it the impression of lying on a surface.
8. Render the scene. See image on top.
.png)
Experiment with different colors on the background, the lamp itself etc.
Fusion file link: http://a360.co/2s5NDpK
