Infrastructure Report - July 2018

in eosio •  9 months ago

This correspondence is our monthly update of the servers being operated in Costa Rica and our roadmap for future expansion of EOS infrastructure in Latin America. We look forward an open discussion with the community and we encourage any EOS user suggestions. Let us know how we can better leverage resources in our region to support EOS. We want your feedback!

System Summary

The first weeks of the EOS mainnet were jam packed with events, including multiple software updates, and the release of eosio v1.1.0. Our technical team worked hard optimizing server configurations, monitoring security, perfecting our backup procedures and setting up alerts and notifications to make sure we continue to provide the EOS network with high levels of uptime and validated compliance. As for hardware, both our full nodes received memory upgrades, we improved security measures, and investigated future datacenter locations in Panama.

Current Endpoints

EOS Costa Rica is currently exposing these endpoints to be remotely accessible.

EndpointNotes
API Endpoint: https://api.eosio.crEOS Costa Rica provides a single, load balanced HTTPS endpoint. The active-active load balancing ensures high availability, and can be easily scaled to include additional servers as traffic requirements increase. We have decided to only expose an HTTPS service as we strongly believe HTTPS has many security benefits over HTTP and have not yet identified a good reason to serve the API without SSL.
P2P Endpoints: p2p.eosio.cr:1976 p2p.eosio.cr:5418Two independent P2P endpoints have been made available on non-standard ports that are not being used by any other block producer. This is part of our ongoing effort to further diversify the technical possibilities available to the network.
BNET Endpoints: p2p.eosio.cr:23881 p2p.eosio.cr:20747EOS Costa Rica has also decided to provide the network with BNET endpoints. Few other BPs are currently providing BNET protocol, we were compelled to help make more BNET services available to our peers.
Testnet API: https://jungle.eosio.crOur team has been actively engaging with the testnet community providing a widely used public HTTPS endpoint on the Jungle testnet available for anyone in the community to put to use.

Hardware Summary

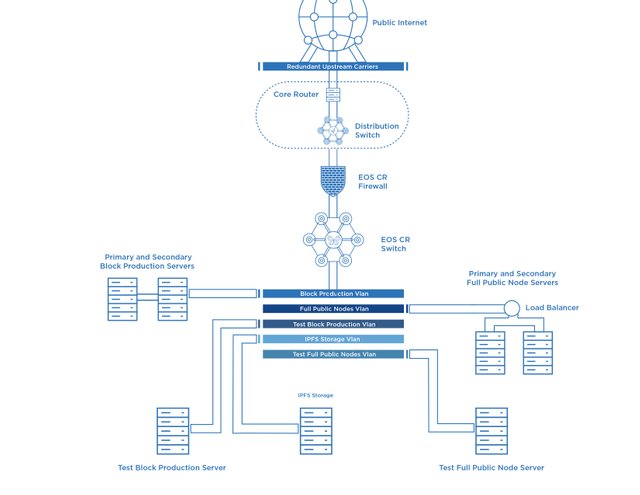

We have deployed 6 dedicated servers, a dedicated switch, and a firewall device. We also implemented DDoS mitigation and a load balancer, represented in the following diagram.

EOS Costa Rica Network Diagram


Hardware Specs

The current hardware characteristics for our block producer compartment in Costa Rica are:

Primary Block Producer

  • CPU : 4 x CPU (24 cores) @ 1.87GHz
  • RAM : 256 GB
  • HDD : 8 TB SSD Storage

Secondary Block Producer / Seed Node

  • CPU : Dual Xeon @ 2.33GHz (8Cores)
  • RAM : 64 GB
  • HDD : 1 TB

Full Nodes (2x)

  • CPU : Dual Xeon @ 2.67Ghz (8Cores)
  • RAM : 132 GB
  • HDD : 1 TB RAID 5 ( 8x146GB)

Testnet Block Producer

  • CPU : Dual Xeon @ 2.33Ghz (8Cores)
  • RAM : 32 GB
  • HDD : 1 TB

Testnet Primary Full Node

  • CPU : Dual Xeon @ 2.33Ghz (8Cores)
  • RAM : 32 GB
  • HDD : 1 TB

Scaling Plan

We are focused on constantly improving our hardware to provide EOS users with more computational resources, especially RAM. We plan on allocating block rewards towards the acquisition and deployment of multiple dedicated servers with the following specifications:

  • HP DL360 Gen 10 server.
  • 2 x CPU 28 cores (total 56 Cores and 112 threads) @ 2.50 GHz
  • 1.5TB DDR4–2666mhz RAM Memory
  • 8TB in Raid 6 configuration
  • 10GB/25GB PCI fibre network card
  • 1GBs uplink

IPFS Storage

Our technical team is excited about the future release of EOS.IO Storage, which is why we have begun to work on the implementation of InterPlanetary File System (IPFS) in order to provide this service for everyone who holds tokens on a blockchain running EOS.IO software. Storage services make it vital for applications to get the information they need without having to run and maintain their own scalable hosting services. EOS Costa Rica is committed to being on the forefront of providing this service by soon deploying an IPFS node in Costa Rica.

Regional Expansion

We believe that any block producer in Latin America requires having a regional presence, not just at the community level but at the infrastructure level as well. We have begun to investigate the optimal path for deploying EOS.IO nodes throughout the Central and South American regions. Members of our technical team have already visited data centers in Panama and will continue to evaluate options for expansion south in Colombia as well.
