手把手教你玩eos:卡牌游戏第八课——优化细节体验
文章由EOS节点EOSWing(柚翼)首发于eoswing.io博客,内容将不定期更新,仅供学习交流之用。
0.引言
0.1教程概况
手把手教你玩eos系列教程,从最基础开始,一步一步教你学会用eos。比如发代币,开发DAPP等等。
本文是第十四篇。本篇教程是卡牌游戏的最后一课,讲解怎么进一步优化整个游戏的细节体验。
0.2 学习内容
相关准备
编写前端代码
测试代码
0.3 机器环境
cpu: 1核
内存: 8G
操作系统:CentOS 7.4 64位
服务器所在地:香港
推荐将服务器放在网络较为优质的环境,比如香港。不然会有很多配置依赖下载上的问题。
1 相关准备
1.1 课程目标
在本课程中,我们将优化游戏细节体验,比如添加游戏帮助对话框,进度提示,优化加载体验等等。
1.2 准备工作
进入开发环境容器
docker exec -it eosdev /bin/bash
进入前端文件夹
cd /eos-work/frontend/
2 编写前端代码
2.1 添加游戏帮助对话框
在GameInfo中添加RulesModal模态对话框
cd ./src/components/Game/components/GameInfo
svn checkout https://github.com/EOSIO/eosio-card-game-repo/branches/lesson-8/frontend/src/components/Game/components/GameInfo/components
在GameInfo.jsx中加入RulesModal组件
vi GameInfo.jsx
更新代码如下:
import React, { Component } from 'react';
// Components
import { Button } from 'components';
//在此次添加引用
// Game subcomponents
import { RulesModal } from './components';
class Info extends Component {
render() {
// Extract data and event functions from props
const { className, deckCardCount, handCardCount, onEndGame } = this.props;
// Display:
// Round number: 18 <-- ((max deck = 17) + 1) - Deck Cards - Hand Cards
// Rules button to trigger a modal
// Button to end the current game
return (
ROUND className="round-number">`{ 18 - deckCardCount - handCardCount }/17
} //在此处添加组件2.2 添加进度提示
cd /eos-work/frontend/src/components/Button/
vi Button.jsx
编辑代码如下:
import React, { Component } from 'react';
class Button extends Component {
constructor(props) {
// Inherit constructor
super(props);
// Component state setup
this.state = {
loading: false,
};
// Bind functions
this.handleClick = this.handleClick.bind(this);
}
handleClick() {
const { onClick } = this.props;
// Show the loading indicator in case the action to be performed takes too long
this.setState({ loading: true });
// If the prop onClick is a function, invoke it and stores its return value in promise
// If the prop onClick is NOT a function, the value of promise
will be false
const promise = typeof onClick === "function" && onClick();
// If promise
is a function (a Promise), invoke setState after it has been resolved.
if (promise && typeof promise.then === "function") {
return promise.then(() => {
this.isComponentMounted && this.setState({ loading: false });
});
}
// Otherwise, just invoke setState directly
this.isComponentMounted && this.setState({ loading: false });
}
componentDidMount() {
this.isComponentMounted = true;
}
componentWillUnmount() {
this.isComponentMounted = false;
}
render() {
const { className, type, style, children } = this.props;
let { loading } = this.state;
// Enable the loading CSS class if either the private state attribute loading
// or the props loading
is true
loading = loading || this.props.loading;
return (
<button
className={Button${ className ? ' ' + className : '' }${ loading ? ' loading' : '' }
}
onClick={ this.handleClick }
{ ...{ type, style } }
{ children }
);
}
}
export default Button;
在Game.jsx中更新引用
cd /eos-work/frontend/src/components/Game/
vi Game.jsx
编辑代码如下:
// React core
import React, { Component } from 'react';
import { connect } from 'react-redux';
// Game subcomponents
import { GameInfo, GameMat, PlayerProfile, Resolution } from './components';
// Services and redux action
import { UserAction } from 'actions';
import { ApiService } from 'services';
class Game extends Component {
constructor(props) {
// Inherit constructor
super(props);
// State for showing/hiding components when the API (blockchain) request is loading
this.state = {
loading: true,
};
// Bind functions
this.loadUser = this.loadUser.bind(this);
this.handleStartGame = this.handleStartGame.bind(this);
this.handlePlayCard = this.handlePlayCard.bind(this);
this.handleNextRound = this.handleNextRound.bind(this);
this.handleEndGame = this.handleEndGame.bind(this);
// Call loadUser
before mounting the app
this.loadUser();
}
// Get latest user object from blockchain
loadUser() {
// Extract setUser
of UserAction
and user.name
of UserReducer from redux
const { setUser, user: { name } } = this.props;
// Send request the blockchain by calling the ApiService,
// Get the user object and store the win_count
, lost_count
and game_data
object
return ApiService.getUserByName(name).then(user => {
setUser({
win_count: user.win_count,
lost_count: user.lost_count,
game: user.game_data,
});
// Set the loading state to false for displaying the app
this.setState({ loading: false });
});
}
handleStartGame() {
// Send a request to API (blockchain) to start game
// And call loadUser
again for react to render latest game status to UI
return ApiService.startGame().then(()=>{
return this.loadUser();
});
}
handlePlayCard(cardIdx) {
// Extract user.game
of UserReducer
from redux
const { user: { game } } = this.props;
// If it is an empty card, not going to do anything
if (game.hand_player[cardIdx] === 0) {
return;
}
// Show the loading indicator if the connection took too long
this.setState({ loading: true });
// Send a request to API (blockchain) to play card with card index
// And call loadUser
again for react to render latest game status to UI
return ApiService.playCard(cardIdx).then(()=>{
return this.loadUser();
});
}
handleNextRound() {
// Send a request to API (blockchain) to trigger next round
// And call loadUser
again for react to render latest game status to UI
return ApiService.nextRound().then(()=>{
return this.loadUser();
});
}
handleEndGame() {
// Send a request to API (blockchain) to end the game
// And call loadUser
again for react to render latest game status to UI
return ApiService.endGame().then(()=>{
return this.loadUser();
});
}
render() {
// Extract data from state and user data of UserReducer
from redux
const { loading } = this.state;
const { user: { name, win_count, lost_count, game } } = this.props;
// Flag to indicate if the game has started or not
// By checking if the deckCard of AI is still 17 (max card)
const isGameStarted = game && game.deck_ai.length !== 17;
// If game hasn't started, display PlayerProfile
// If game has started, display GameMat
, Resolution
, Info
screen
return (
// Map the following action to props
const mapDispatchToProps = {
setUser: UserAction.setUser,
};
// Export a redux connected component
export default connect(mapStateToProps, mapDispatchToProps)(Game);
2.3 优化加载体验
现在每次刷新游戏屏幕时都会短暂显示登录屏幕。
这是由ApiService从区块链获取最新用户数据引起的。
在检索用户数据时,dApp认为用户没有登录。
为了防止这种情况,我们将向App.jsx添加一个名为loading的组件状态。
在检索区块链数据时出现,直到有反馈,确定是应用是在登录页面,游戏结束屏幕还是个人资料屏幕等等。
cd /eos-work/frontend/src/components/Login/
vi Login.jsx
更新代码如下:
import React, { Component } from 'react';
import { connect } from 'react-redux';
// Components
import { Button } from 'components';
// Services and redux action
import { UserAction } from 'actions';
import { ApiService } from 'services';
class Login extends Component {
constructor(props) {
// Inherit constructor
super(props);
// State for form data and error message
this.state = {
form: {
username: '',
key: '',
error: '',
},
isSigningIn: false,
}
// Bind functions
this.handleChange = this.handleChange.bind(this);
this.handleSubmit = this.handleSubmit.bind(this);
}
// Runs on every keystroke to update the React state
handleChange(event) {
const { name, value } = event.target;
const { form } = this.state;
this.setState({
form: {
...form,
[name]: value,
error: '',
},
});
}
componentDidMount() {
this.isComponentMounted = true;
}
componentWillUnmount() {
this.isComponentMounted = false;
}
// Handle form submission to call api
handleSubmit(event) {
// Stop the default form submit browser behaviour
event.preventDefault();
// Extract form
state
const { form } = this.state;
// Extract setUser
of UserAction
and user.name
of UserReducer from redux
const { setUser } = this.props;
// Set loading spinner to the button
this.setState({ isSigningIn: true });
// Send a login transaction to the blockchain by calling the ApiService,
// If it successes, save the username to redux store
// Otherwise, save the error state for displaying the message
return ApiService.login(form)
.then(() => {
setUser({ name: form.username });
})
.catch(err => {
this.setState({ error: err.toString() });
})
.finally(() => {
if (this.isComponentMounted) {
this.setState({ isSigningIn: false });
}
});
}
render() {
// Extract data from state
const { form, error, isSigningIn } = this.state;
return (
// Map all state to component props (for redux to connect)
const mapStateToProps = state => state;
// Map the following action to props
const mapDispatchToProps = {
setUser: UserAction.setUser,
};
// Export a redux connected component
export default connect(mapStateToProps, mapDispatchToProps)(Login);
再在App.jsx中更新引用
cd /eos-work/frontend/src/components/App/
vi App.jsx
更新代码如下:
// React core
import React, { Component } from 'react';
import { connect } from 'react-redux';
// Components
import { Game, Login } from 'components';
// Services and redux action
import { UserAction } from 'actions';
import { ApiService } from 'services';
class App extends Component {
constructor(props) {
// Inherit constructor
super(props);
// 此处添加状态,默认loading为true
// State for showing/hiding components when the API (blockchain) request is loading
this.state = {
loading: true,
};
// Bind functions
this.getCurrentUser = this.getCurrentUser.bind(this);
// Call getCurrentUser before mounting the app
this.getCurrentUser();
}
getCurrentUser() {
// Extract setUser of UserAction from redux
const { setUser } = this.props;
// Send a request to API (blockchain) to get the current logged in user
return ApiService.getCurrentUser()
// If the server return a username
.then(username => {
// Save the username to redux store
// For structure, ref: ./frontend/src/reducers/UserReducer.js
setUser({ name: username });
})
// To ignore 401 console error
.catch(() => {})
//在获取到区块链数据反馈后,设置loading状态为false
// Run the following function no matter the server return success or error
.finally(() => {
// Set the loading state to false for displaying the app
this.setState({ loading: false });
});
}
render() {
// Extract data from state and props (user
is from redux)
const { loading } = this.state;
const { user: { name, game } } = this.props;
// 确定游戏处于什么状态
// Determine the app status for styling
let appStatus = "login";
if (game && game.status !== 0) {
appStatus = "game-ended";
} else if (game && game.selected_card_ai > 0) {
appStatus = "card-selected";
} else if (game && game.deck_ai.length !== 17) {
appStatus = "started";
} else if (name) {
appStatus = "profile";
}
// Set class according to loading state, it will hide the app (ref to css file)
// If the username is set in redux, display the Game component
// If the username is NOT set in redux, display the Login component
return (
}
// Map all state to component props (for redux to connect)
const mapStateToProps = state => state;
// Map the following action to props
const mapDispatchToProps = {
setUser: UserAction.setUser,
};
// Export a redux connected component
export default connect(mapStateToProps, mapDispatchToProps)(App);
3 测试代码
cd /eos-work/frontend
npm start
在浏览器中输入网址测试。

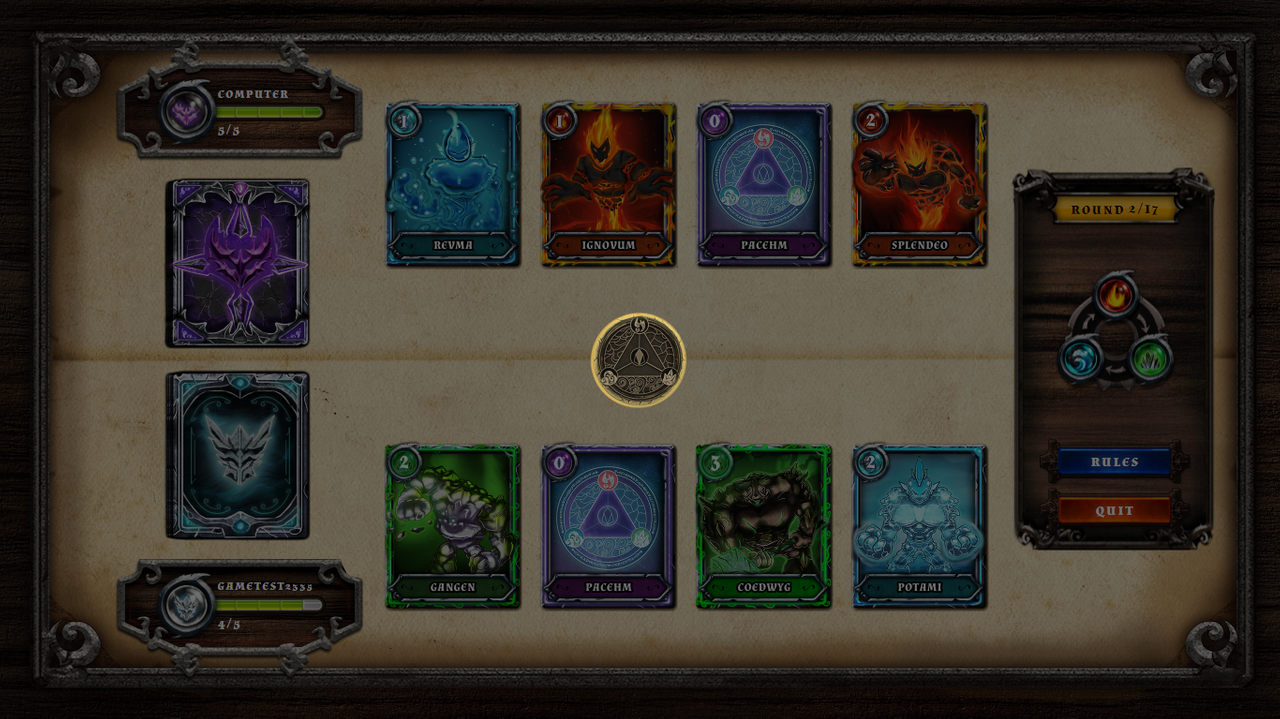

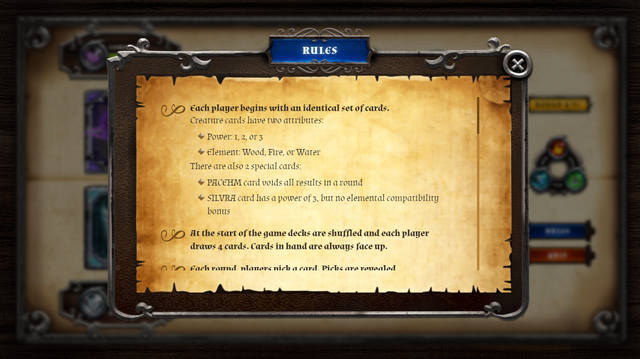

点击右边的rules按钮查看游戏规则帮助
选择卡牌后,在等待时会出现进度加载提示:
还有刷新后回到主界面等等,就不一一截图了。
至此,一个完整的EOS卡牌游戏就制作完成了。
4 后记
延伸阅读
在本文的学习中如果遇到问题,欢迎留言或者在如下链接寻找解决方案:
EOS官方游戏开发第五课: https://battles.eos.io/tutorial/lesson5/chapter1
如果觉得这一系列教程有点意思,请投票给柚翼节点(eoswingdotio)。您的投票是本教程持续更新的动力源泉,谢谢。
