#14. LESSON ON BASIC ELECTRONICS : PART-4

in #engineering7 years ago

Hello Steemians, Today I bring my new post on BASIC ELECTRONICS : PART-4, after my previous post PART-3. I think that will be helpful specifically the students. If the post has proved to be helpful to you then do Upvote my post which will give me strength to bring such more post for you all because it takes lots of hardship to bring such post every time..
Lets see what the BASIC ELECTRONICS is all about !!

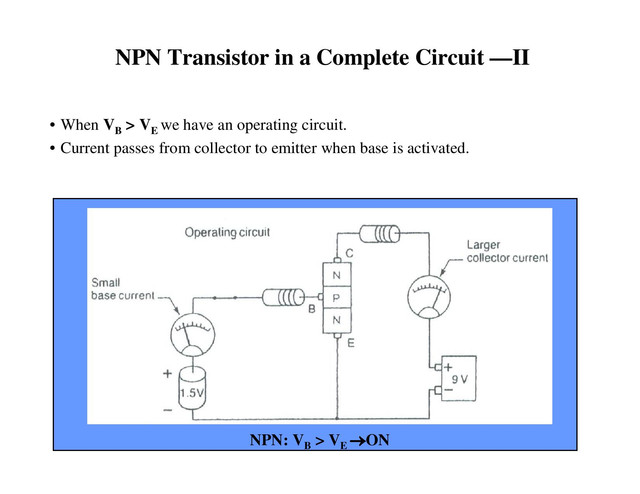

Basic Electronics-page-023.jpg

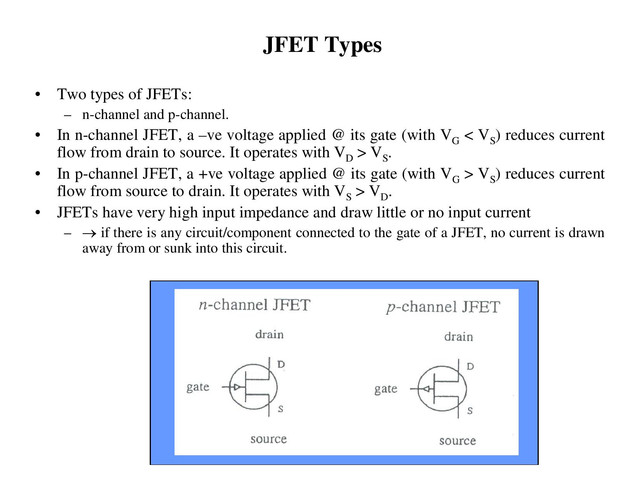

Basic Electronics-page-024.jpg

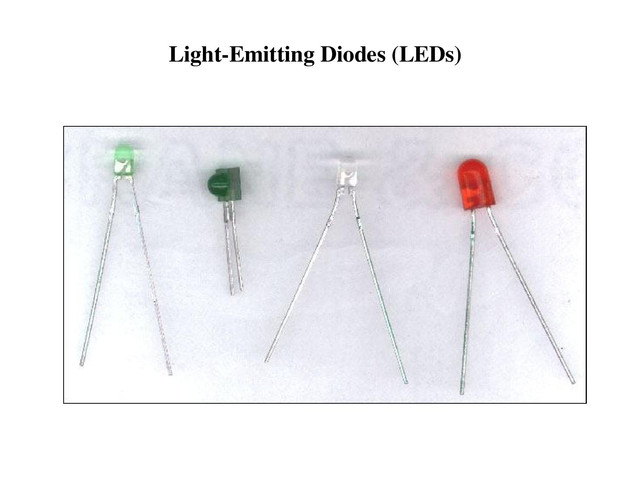

Basic Electronics-page-025.jpg

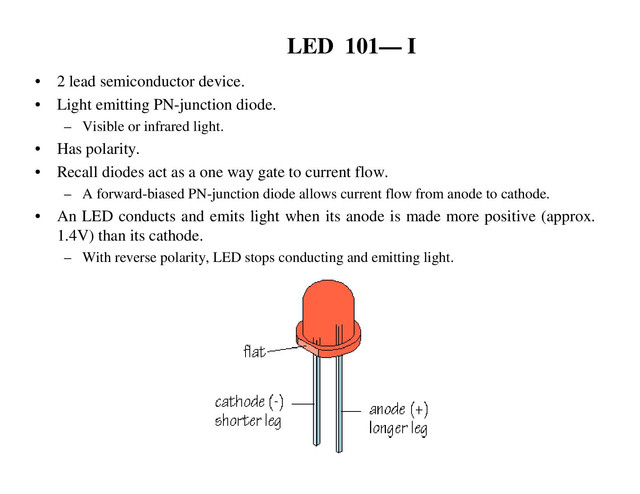

Basic Electronics-page-026.jpg

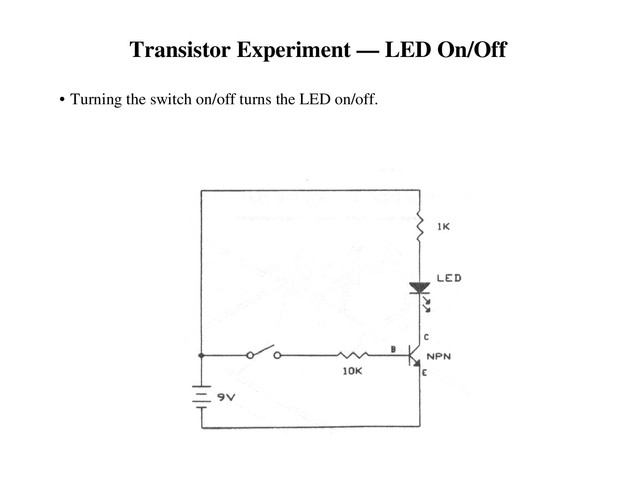

Basic Electronics-page-027.jpg

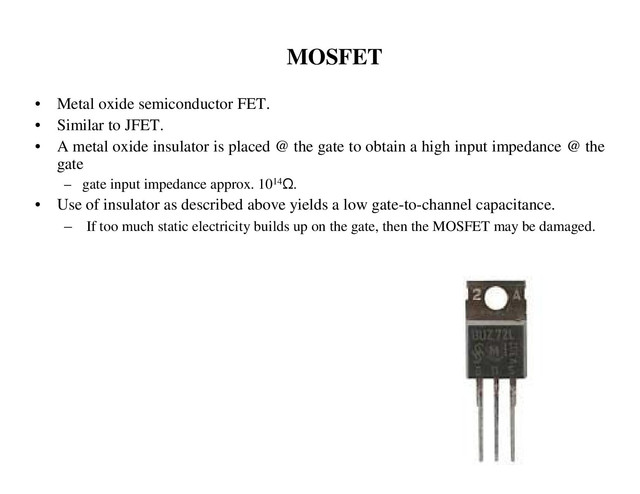

Basic Electronics-page-028.jpg

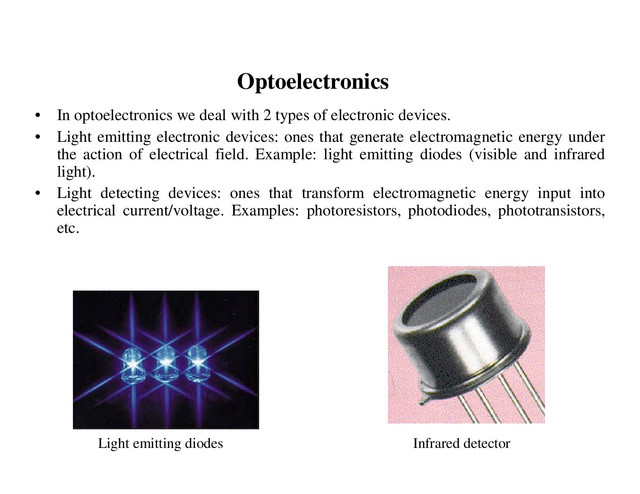

Basic Electronics-page-029.jpg

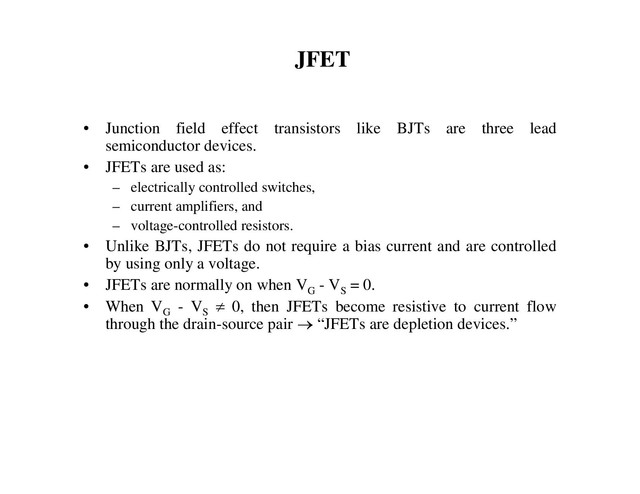

Basic Electronics-page-030.jpg

Basic Electronics-page-031.jpg

Basic Electronics-page-032.jpg


REFERENCES:

WIKIPEDIA

YOUTUBE


I hope you enjoyed learning about BASIC ELECTRONICS. If you love dreaming and learning science then please follow me, @light-o-trix


If you are interested in various domains of Science and Mathematics then join the @steemstem project, team to support high quality STEM (Science,Technology, Engineering and Mathematics) related contents. Join them in steemit.chat to interact with the science authors from all over the world.

Thank you for reading my content !!
