Greetings, how are you friends? Hopefully still the spirit. Previously we have completed the calculation of labor and material requirements on the work of mountain rock foundations, reinforced concrete sloof works, brick walls and reinforced concrete slabs. Today we will discuss other work, namely concrete wall painting work.

This painting work is usually done when the building is almost finished so painting work includes the finishing work section.

The types of paint used today is very diverse, given the needs of users who increasingly give priority to the best quality.

Paint wall is a product used to protect and beautify the wall or surface by means of lining it.

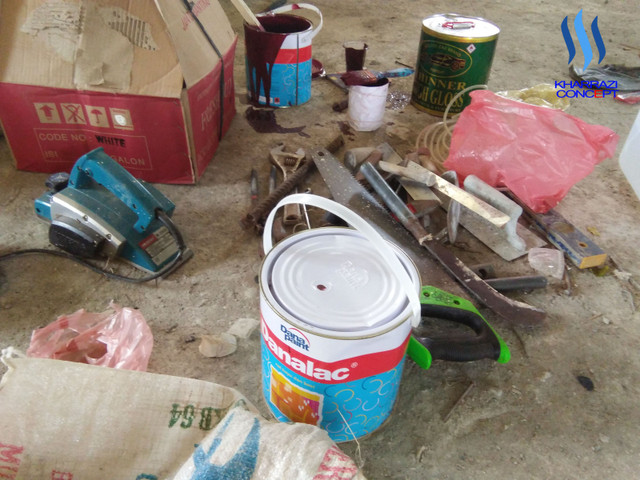

Wall paint is commonly used in for interior and exterior wall painting. The photo I ( @kharrazi ) took a few months ago on a construction project using a pocket camera


Paint raw materials generally consist of

  1. Binder, the main component that serves as an adhesive coat of paint and the surface of the media.
  2. Solvent, the solvent which dissolves the main ingredient.
  3. Pigment / Filler, filler-forming paint layer as a dye to create paint film color coating.
  4. Additive, additional material that makes paint easy to use.

Wall paint is divided based on the type of resin binder used, the type of solvent and filler used.

Wall paint is different from oil paint, the most fundamental difference in oil paint is on color pigment particles tied with oil media and dilution system consisting of turpentine mixture and oil

You can see in our previous discussion that the wall is a solid structure that limits and protects an area, the main function of the wall is as a barrier / partition and structure.

Plamir wall used on the wall surface before painting with wall paint is done, plamur wall serves to flatten the wall that we will paint. We often find defective walls, such as fine cracks, small holes and uneven wall surfaces.

Plamir is recommended for use on interior walls, for the use of exterior walls is required special plamir that is not quickly exfoliated due to weather.

In contrast to plamir, basic paint can be used on the entire wall before the wall paint process.

The base paint serves as a new paint adhesive on the old wall, closes the uneven surface pores, prevents alkali from entering the paint layer, saves the use of finishing paint, can produce better final paint quality and make the color more perfect.

As our previous discussion we will determine the extent of the field that we will paint with a long length of 8.00 m and height of 3.50 m with two paint surfaces two sides (interior and exterior).

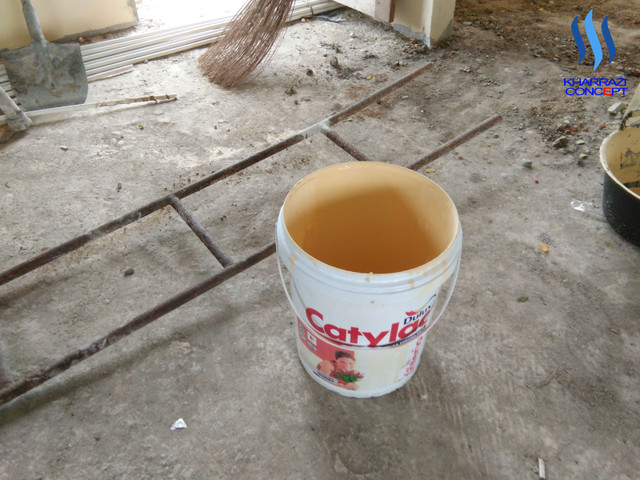

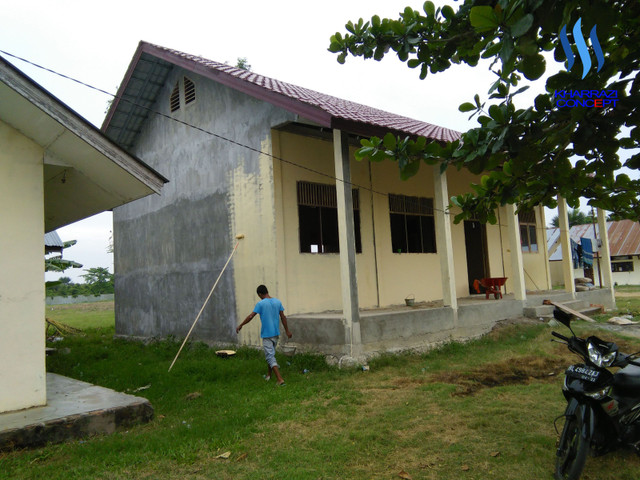

A worker is preparing to continue the painting work. The photo I ( @kharrazi ) took a few months ago on a construction project using a pocket camera


AREA CALCULATION


Is known :

ItemsInformation
Length8.00 m
Height3.50 m
Painted fields2 (exterior and interior)

Answer :

ItemsInformation
(length x height) x 2m2
(8.00 x 3.50) x 256.00 m2
Total amount56.00 m2

CALCULATION OF LABOR AND MATERIAL REQUIREMENTS


I use the Indonesian National Standard Analysis to complete the calculation of labor requirement and paint job material.

To complete the 1m2 job a new wall painting is required.

ItemsInformation
Worker0.0200 Person Per Day
Painter0.0630 Person Per Day
Foreman0,0063 Person Per Day
Overseer0.0030 Person Per Day
Plamir Wall0.1000 Kg
Basic Paint0.1000 Kg
Wall Paint0.2600 Kg
Brush size 4"0.010 Piece

After we know the coefficient of labor and material needs to complete the painting work 1 m2, then to determine the needs of labor and materials in accordance with what we need we will make multiplication between coefficient 1m2 with area requirement 56.00 m2.

ItemsInformationAmount
Worker0.0200 Person Per Day x 56.00 m21.12 Person
Painter0,0630 Person Per Day x 56.00 m22.52 Person
Foreman0,0063 Person Per Day x 56.00 m20.35 Person
Overseer0.0030 Person Per Day x 56.00 m20.17 Person
Plamir Wall0,1000 Kg x 56,00 m25,60 Kg
Basic Paint0.1000 Kg x 56.00 m25.6 Kg
Wall Paint0,2600 Kg x 56,00 m214,56 Kg
Brush size 4"0.010 Fruit x 56.00 m20.56 piece

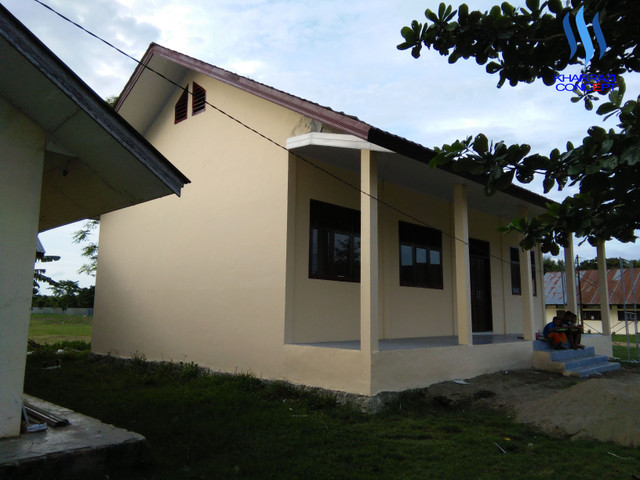

The painting work has been completed. The photo I ( @kharrazi ) took a few months ago on a construction project using a pocket camera


CONCLUSION


To finish the job of painting the interior and exterior walls with the dimensions of length 8.00 m height 3.50 m is required.

ItemsInformation
Worker1.12 Person
Painter2.52 Person
Foreman0.35 Person
Overseer0.17 Person
Plamir Wall5.60 Kg
Basic Paint5.6 Kg
Wall Paint14.56 Kg
Brush size 4"0.56 Piece

This calculation is only an example and can be used anytime either engineers and lay people. This calculation is based on technical analysis in accordance with Indonesian National Standard and can be developed as needed.


This is all I can write right now, for all the lack of writing and as a servant of God I apologize.
Thanks to friends who have visited this blog and are willing to provide constructive comments, as well as to all science persons who are willing to sacrifice their time to create a better human civilization.


source:

www.wikipedia.org-Paint

www.wikipedia.org-Oil Paint

www.wikipedia.org-Wall

www.wikipedia.org-Technical analysis

www.hdesignideas.com

www.beranitanya.blogspot.co.id


Do you love science? then join us at steemstem using @science tags and @steemstem, you can also chat with us at steemstem chat. channel.


Best regards @kharrazi
