Project 5: 555 timer (Adjustable duty cycle)
Description
- 555 Timer with adjustable duty cycle
- Frequency - about 4.5kHz
- Produces square wave
Schematic
Gallery

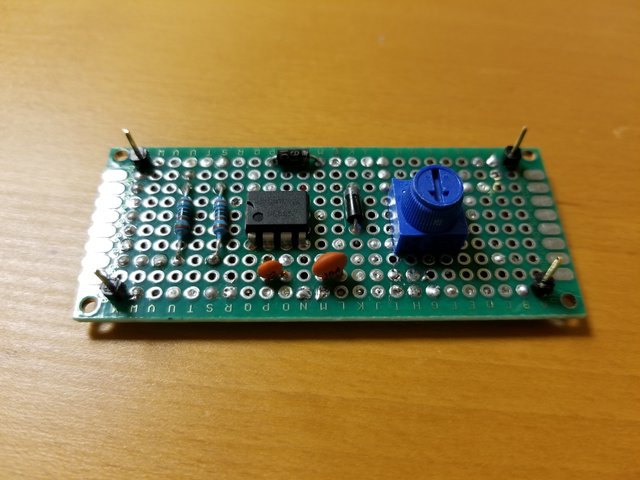

Top View

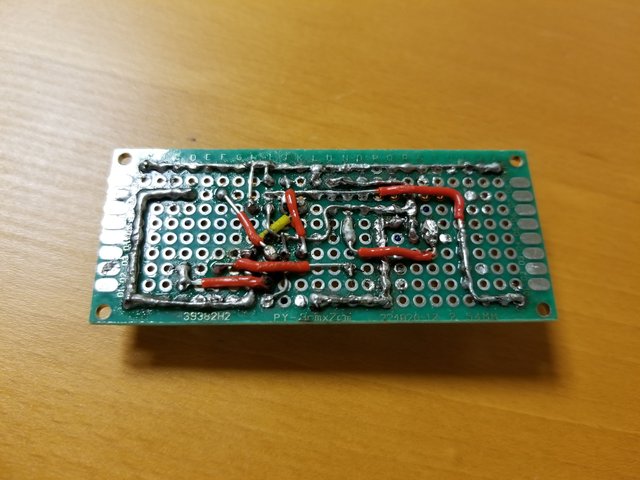

Bottom View (don't buy cheap soldering iron)

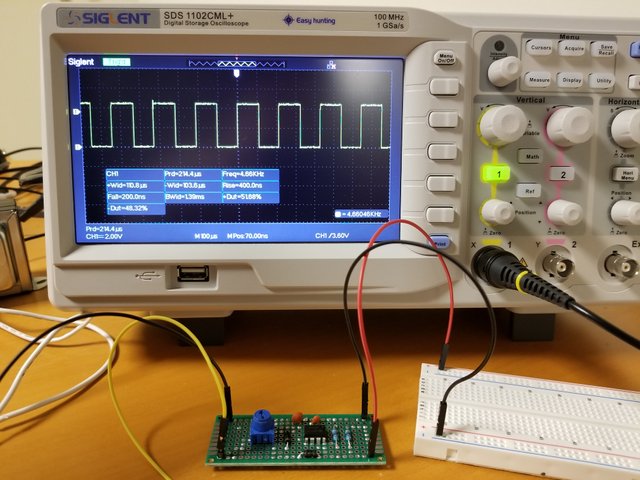

50% duty cycle

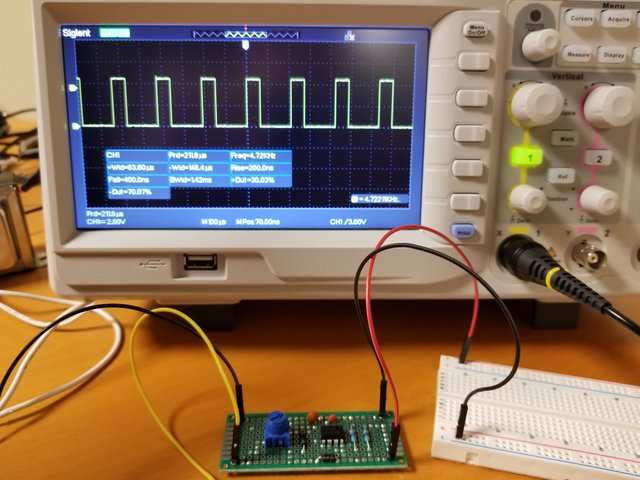

30% duty cycle
Notes
- Using fast switching schottky diode speeds frequency
- Using lower value resistors and capacitors speeds frequency.
- Getting a higher quality soldering iron can save you a lot of time
