Voltage and Resistance

---

Voltage

• Potential energy is the amount that something wants to be somewhere else.
• In physical terms, it’s the amount that the egg on the counter wants to be on the floor. Massgravityheight

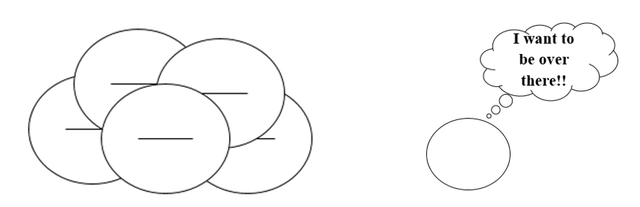

• In electricity, it’s the amount that a hole at the positive end of a battery wants to get to the negative end of the battery.
• This potential energy is called Voltage
• Voltage is usually represented by the letter V

---

Resistance

---

Resistance

• Atoms are made up of mostly space. There’s a nucleus in the middle and there are electrons floating around.
• If you look at a free electron that’s trying to get to the positive side, there’s a possibility that as it travels through the conductive metal, it might bump into an atom.
• The probability of an electron running into an atom is known as resistance.
• Resistance is usually represented by the letter R

---

Ohm's Law

With that in mind, there are a few factors that affect resistance:

• Atomic density of the substance. The more tightly packed the atoms, the better chance of the electron hitting one.
• Length of the path. As the path gets longer, there’s a higher probability of a collision
• Change in temperature. As the temp increases, the atoms move around a lot more, this increases the chance for collision
• Cross sectional area of the path. As the path gets larger, there’s a better chance of avoiding collision
• When the electrons hit atoms, they use up a little bit of energy. So in order for the electron to move from one end to the other, there has to be sufficient potential energy.
• The higher the resistance, the higher the potential energy required to get the electron through.
• If you kept the resistance constant and increased the voltage, the net current carriers would be greater.
• In 1827, this relationship was discovered by Georg Ohm



  This is Ohm’s Law


  V=I*R


---

---
