DIY Wireless Portable Charger

in diy •  2 months ago


I made a power bank a while back, from old laptop batteries that would no longer charge. It turns out, one battery was below its cutoff voltage, so the circuit did not recognize it and would not charge. I manually charged the dead battery and it held its charge for 24 hrs, I counted it as good, well good enough. I arranged the cells in 1P6S configuration, and after doing a capacity test, I found it to be around 14 Ah at 3.7 Volts. I used a USB connector from an old phone charger, and a boost converter to get it to 5.2 Volts, and a switch to keep the battery off when not in use. I used a red LED with a voltage divider so the LED would go out when the voltage falls below 3.0 Volts. That was my only indicator of low voltage at the time, but it was a good visual reference. The other issue was that I need to use a balance charger to recharge the power bank. But since it was has a capacity of 14 Ah, I only had to charge it probably once every 2 weeks, usually, it was not a problem.

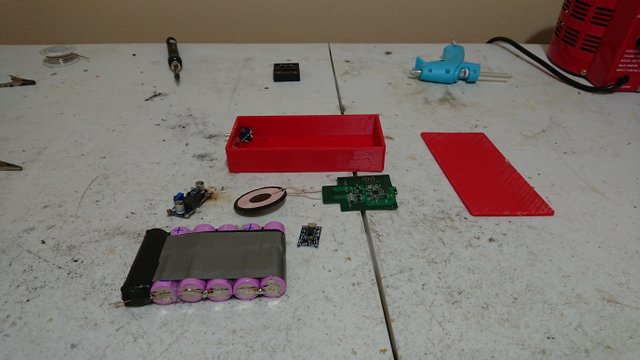

Parts List

  • 3D printed case
  • 6x 18650 batteries
  • boost converter
  • 18650 battery charging circuit
  • main power switch
  • 2x smaller switch
  • wireless coil and circuit
  • USB connector
  • bright LED
  • wire
  • solder and solder iron
  • hot glue

I wanted to finally add a charging/protection circuit in the power bank. I found one on Amazon, a pack of 10 for $5, that charges at 1 Amp. It would take a long time to charge, but I have the option to fast charge it with my balance charger.

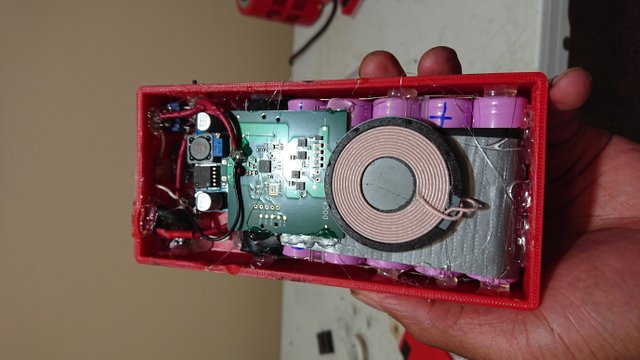

But I didnt stop there, I had a Wireless Charger that I never used. I took it apart and the Circuit was small enough to fit, I just had to add that feature to it.

I also added a brighter White light LED, to take the place of the red LED.

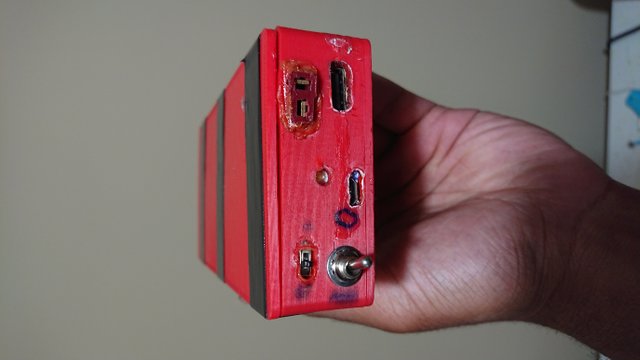

I added switches for every different component so I dont drain the battery when not in use. Soldering took 1 hour, and troubleshooting.


The wireless charging works, but it needs to be place just right to ensure coupling. I have it centered so the phone just needs to be flush with the bottom of the power bank.

ezgif.com-resize (1).gif

Authors get paid when people like you upvote their post.
If you enjoyed what you read here, create your account today and start earning FREE STEEM!
Sort Order:
Congratulations This post has been upvoted by SteemMakers. We are a community-based project that aims to support makers and DIYers on the blockchain in every way possible.

Join our Discord Channel to connect with us and nominate your own or somebody else's posts in our review channel.

Help us to reward you for making it ! Join our voting trail or delegate steem power to the community account.

Your post is also presented on the community website www.steemmakers.com where you can find other selected content.

If you like our work, please consider upvoting this comment to support the growth of our community. Thank you.

I just found this post because it was curated on the Meadows & Makers podcast by @makinstuff and @jackdub. It is a little too late to give you an upvote, but I'm looking forward to seeing your new projects.

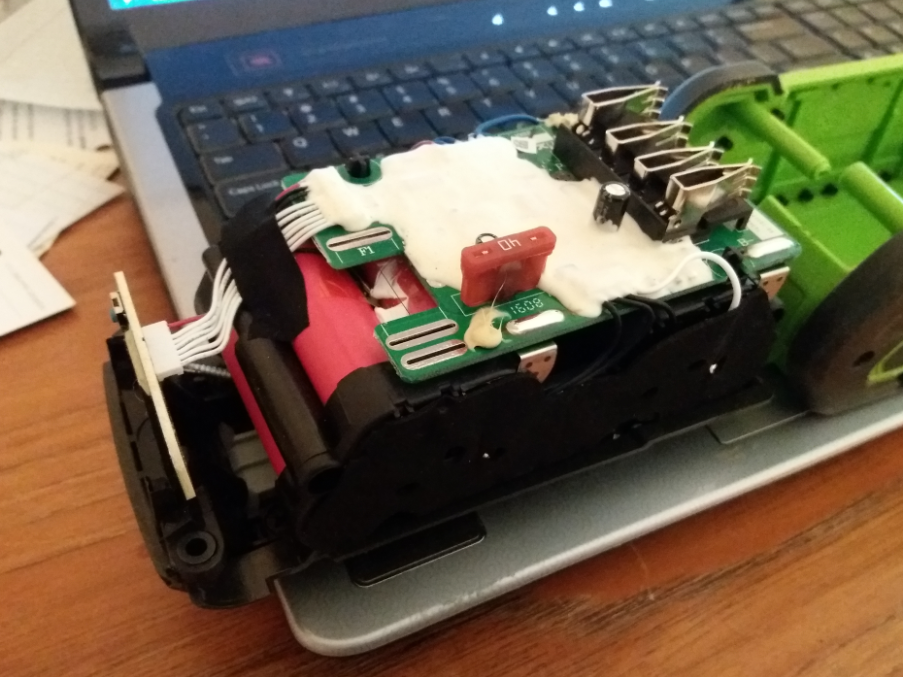

As I'm writing this I am looking at a battery pack that is in need of your wizardry.

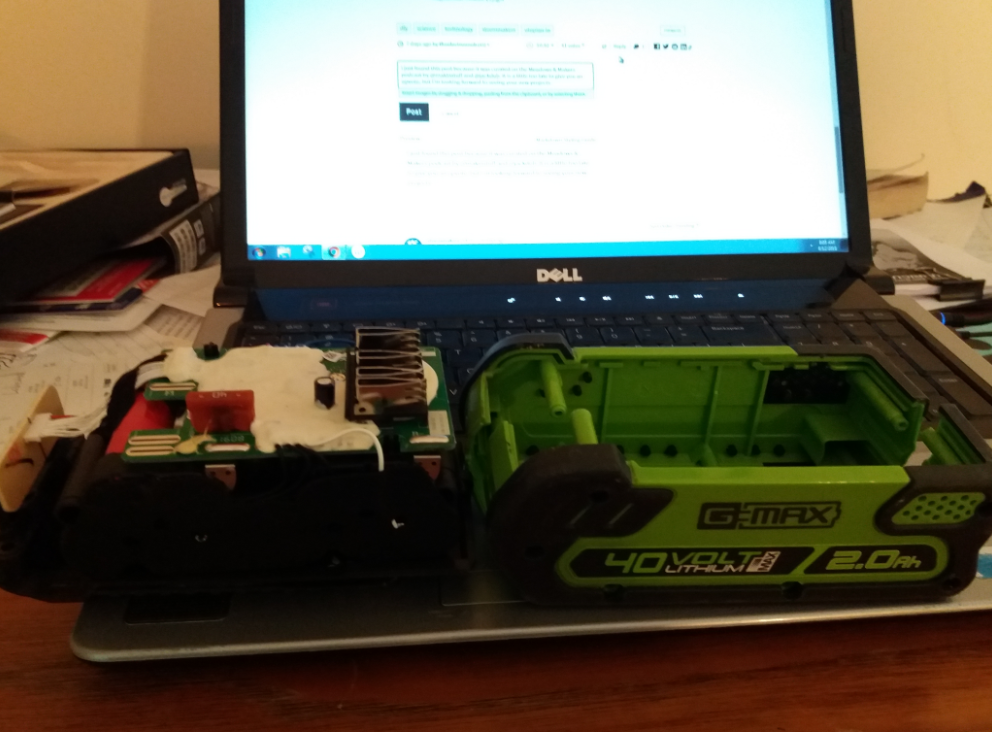

The charger seems to think that it is fully charged, but it won't run the lawnmower at all. I also have a chainsaw that takes this type of battery. It won't run that either.

·
