So to get off on a good start; I decided to post a tutorial here; and on Cent, about how I created this simple Cent keyring:

I used my new design tool, SelfCad, to do this.

First step: Get that logo

I ripped the Cent logo off the internet in a nice white/transparent format that I could work with:

I know you can't see anything if you're in Day Mode here on steemit, the image is completely white XP

Image to 3D

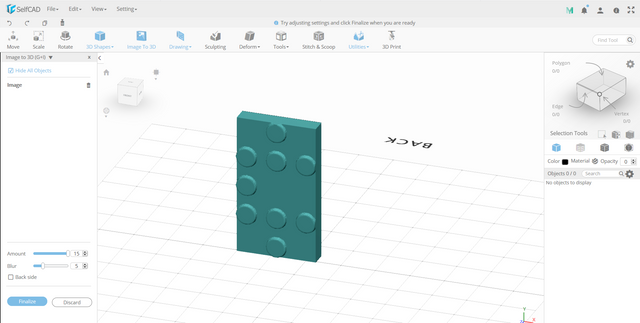

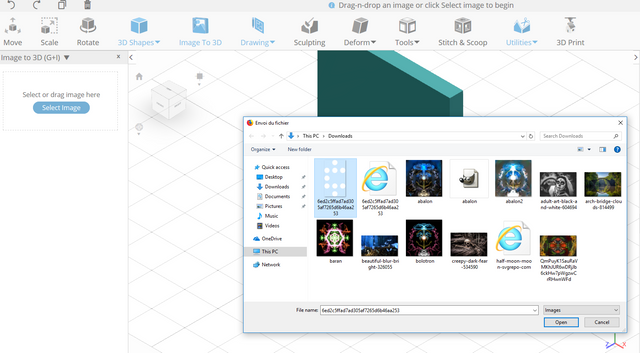

Then used the Image to 3D functionality:

Neato !

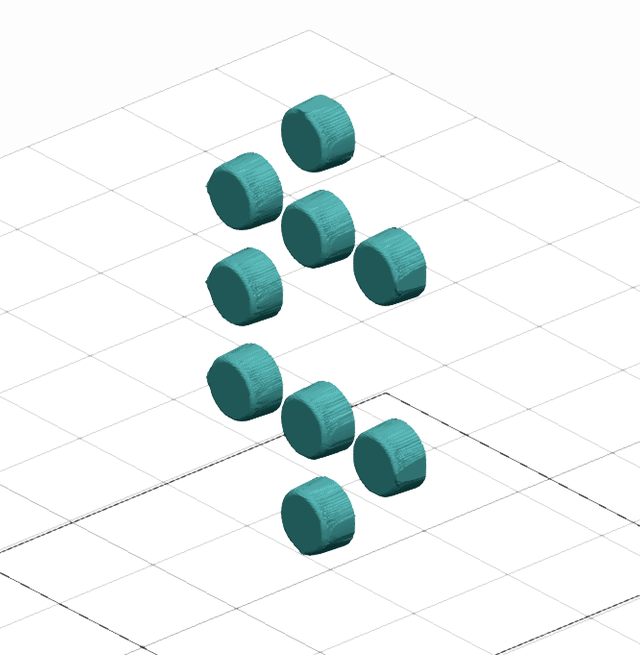

adjusting the shape and keeping what we want

So, this shape's not pretty AT ALL, plus I really just want the rings that compose the logo, not that blocky backside.

I have plans for those rings... oh yes I do...

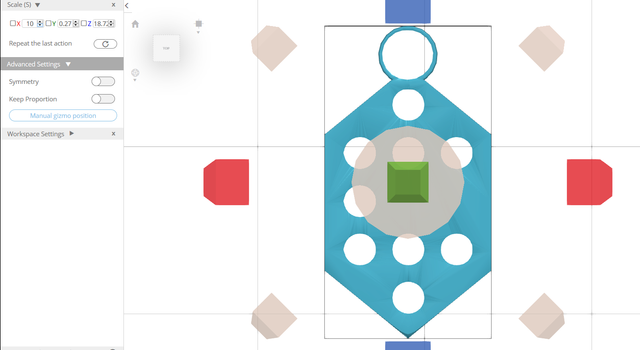

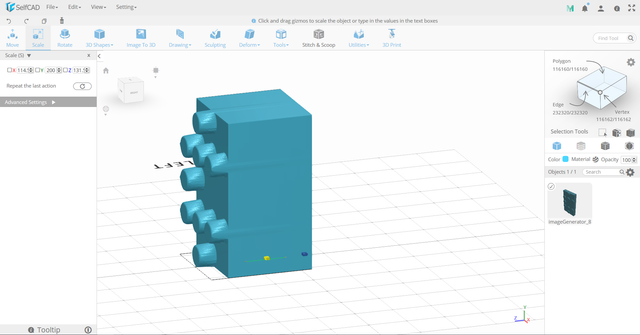

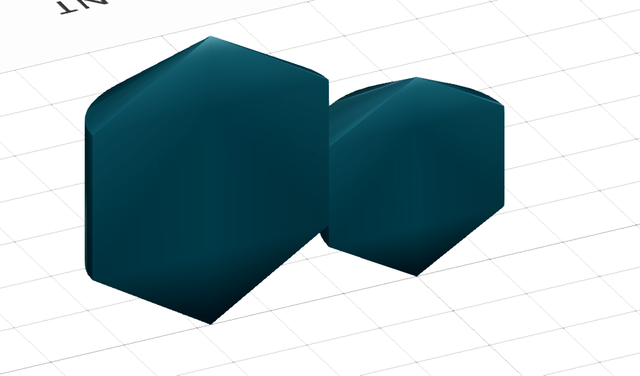

So I scale the shape in the direction of the logo itself

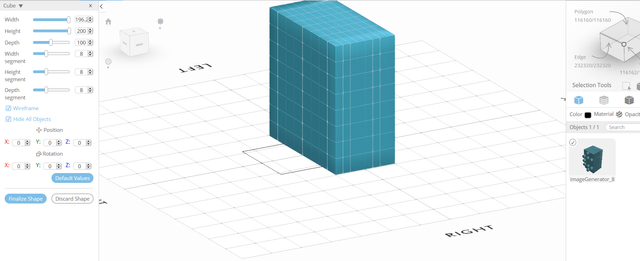

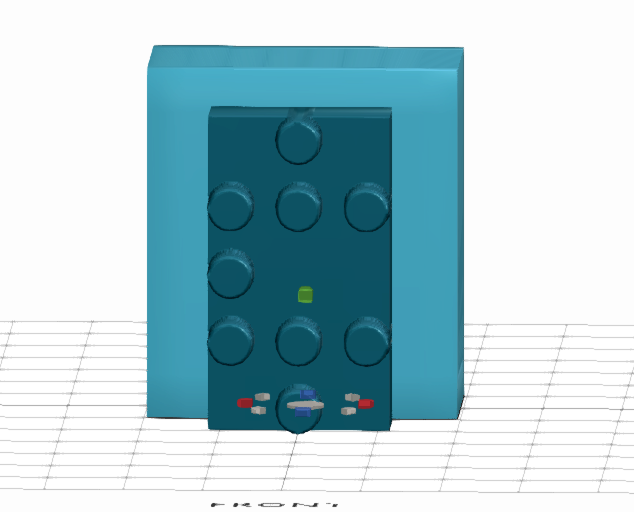

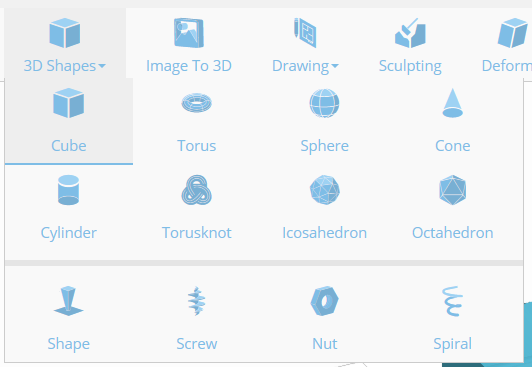

Then create a slightly larger and wider cube

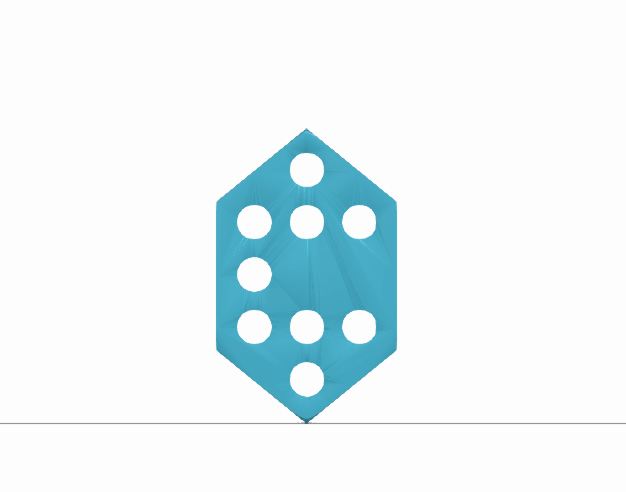

Now I want to remove the blocky background, keeping only the ring shapes.

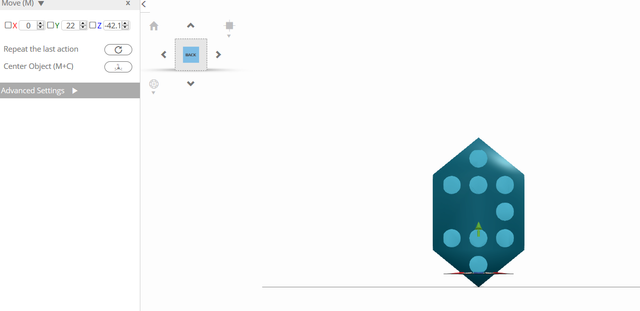

So let's position our block in the middle of the other one

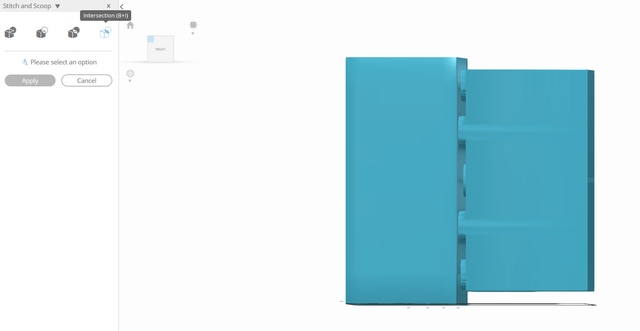

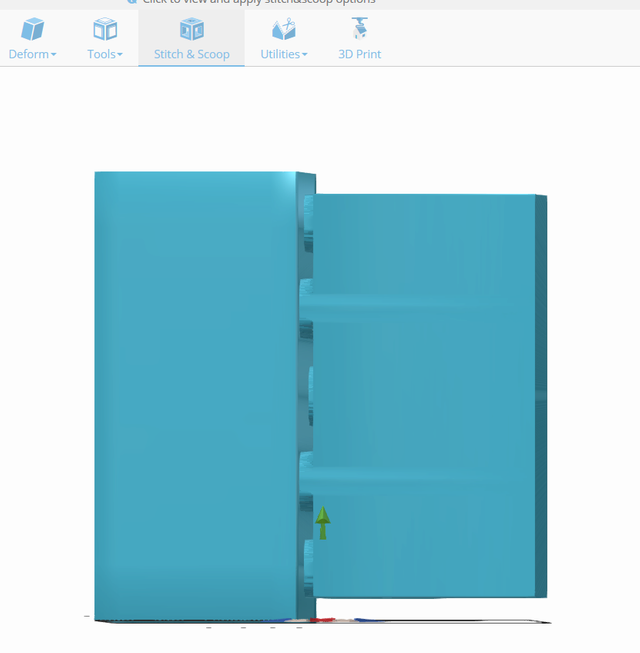

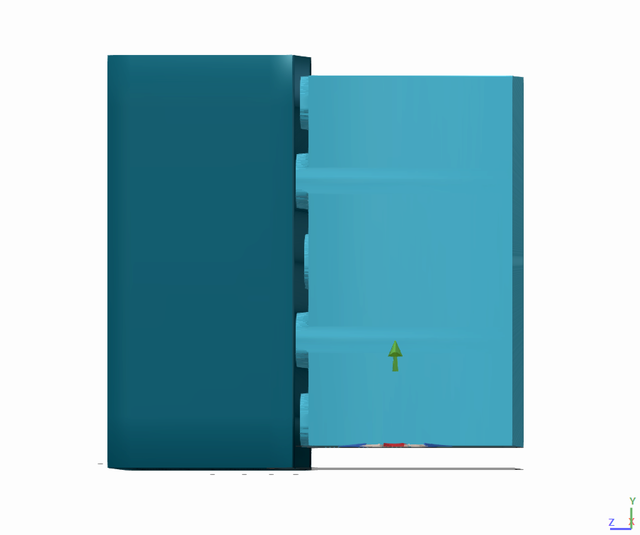

Move it so just the parts we want intersect between the two models (yes I could just ahve intersected what we didn't want and removed it like that. there's always plenty of ways to do these things.)

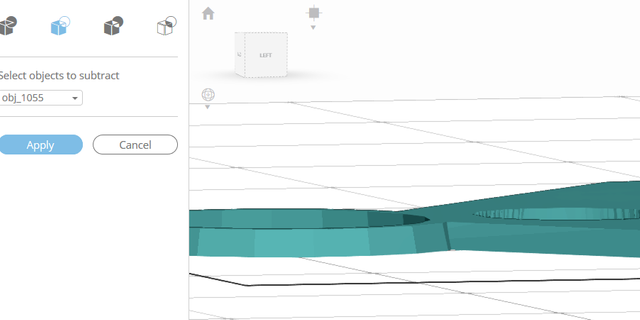

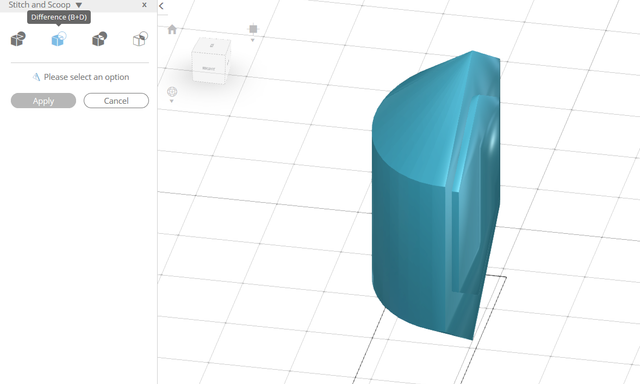

Stitch and scoop is how SelfCad says boolean functions ;)

Create a proper base

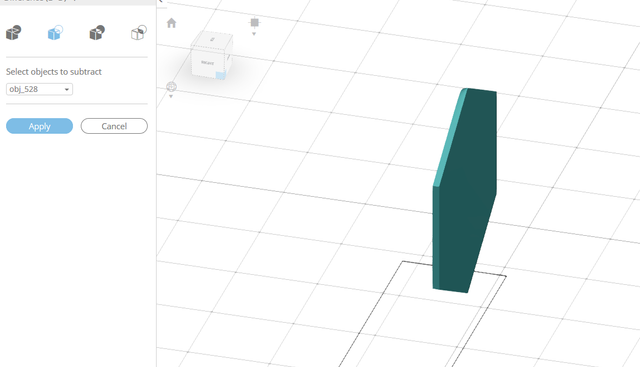

Now let's generate a proper background.

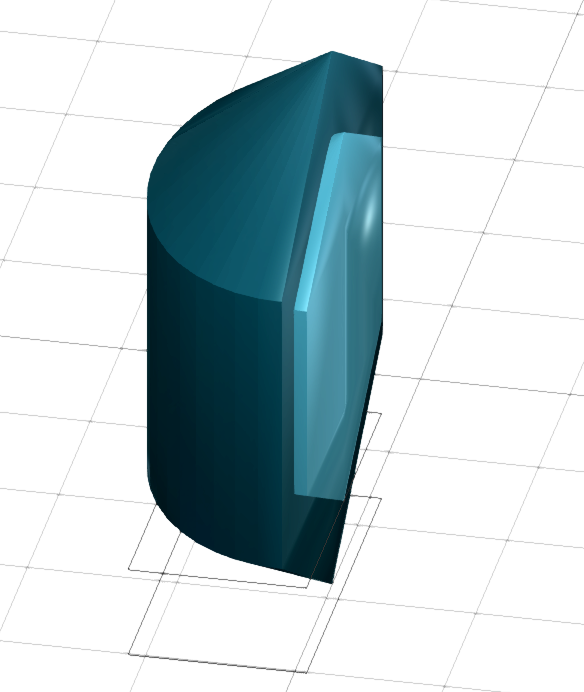

The angle option let's us keep just half of the model easy peasy !

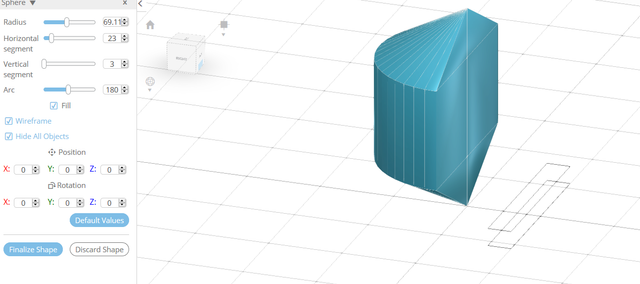

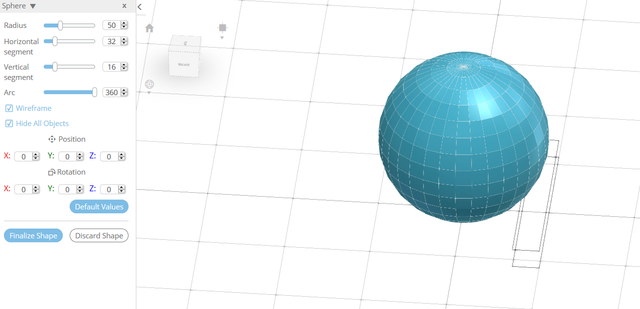

copy and scale this part, so that we can remove the protruding part in the back (I know it's a bit roundabout, but It seemed the easiest way I could think of to generate a cut from a spherical object XP)

Create the basic keychain, without loop

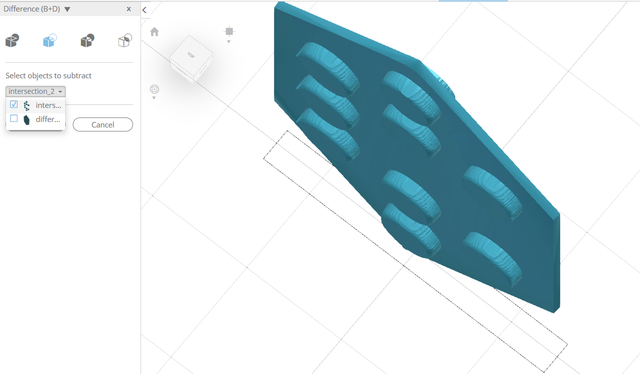

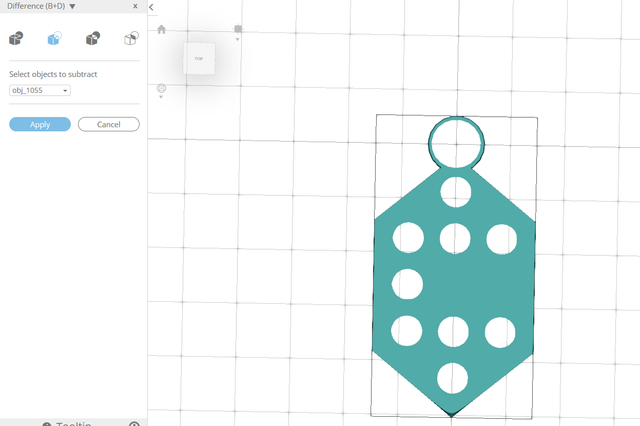

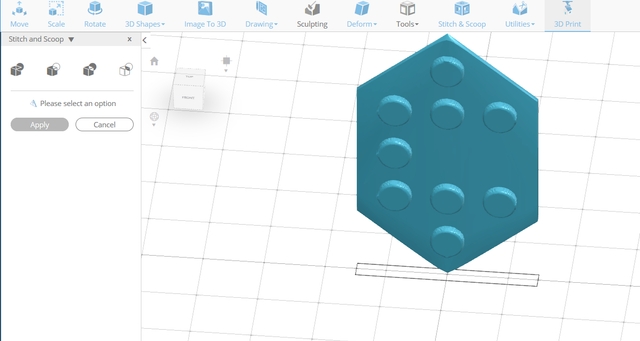

Now we've got the back, we can reuse stitch and scoop to scoop out our logo from our base:

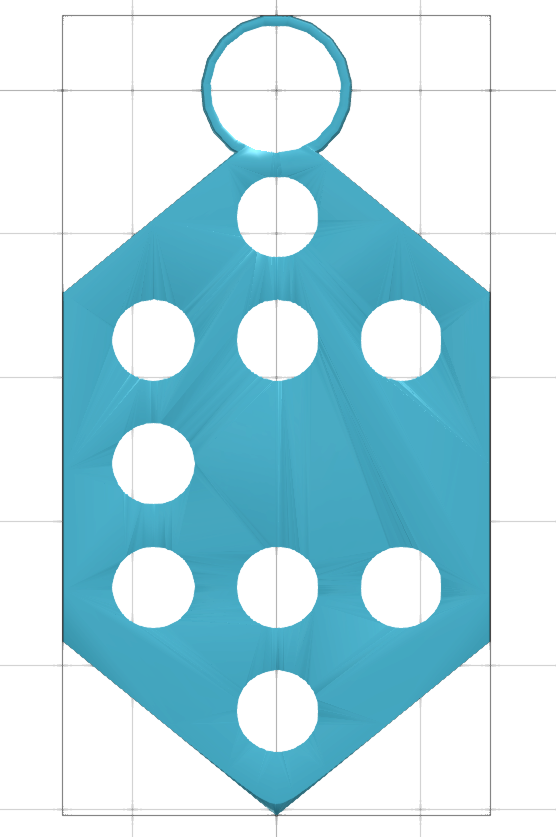

Add an attachment loop, for proper keychainization XP

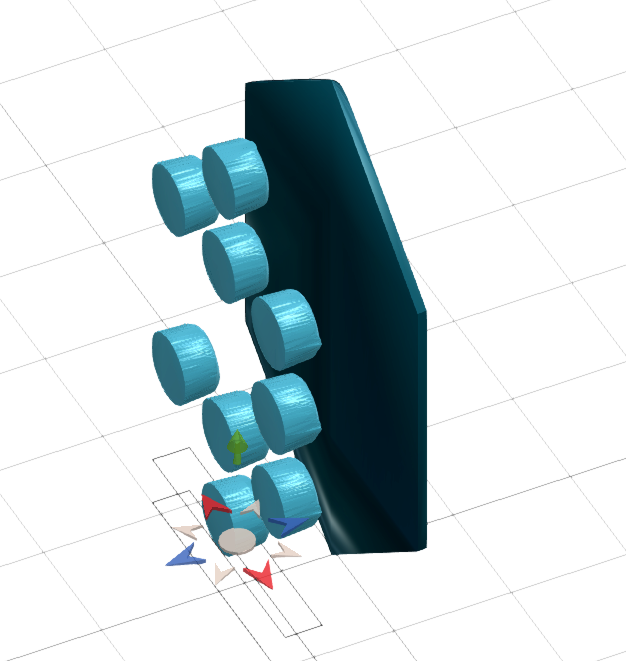

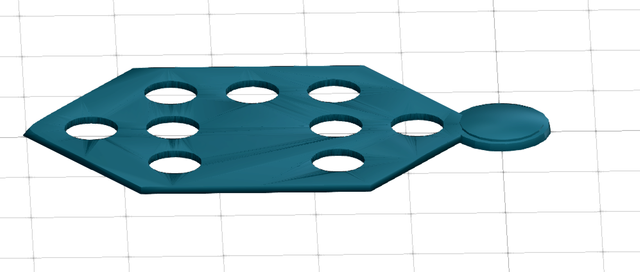

Here I've rotated the model to it's side, and added two flat cylinders.

One intersects our model precisely, with the exact same width as our model, the other one cuts through it's middle, ready to be Scooped out

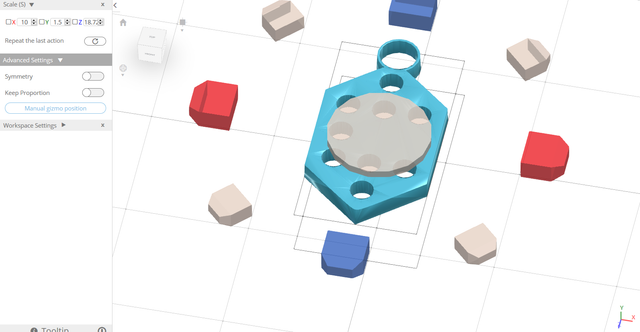

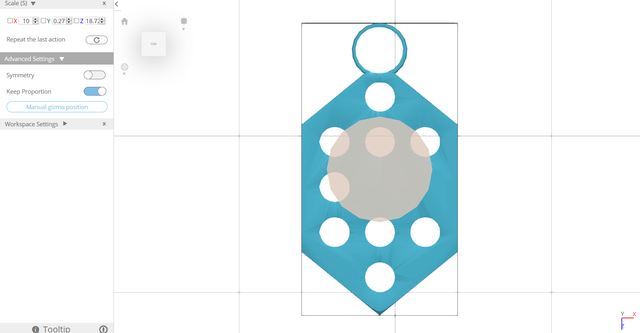

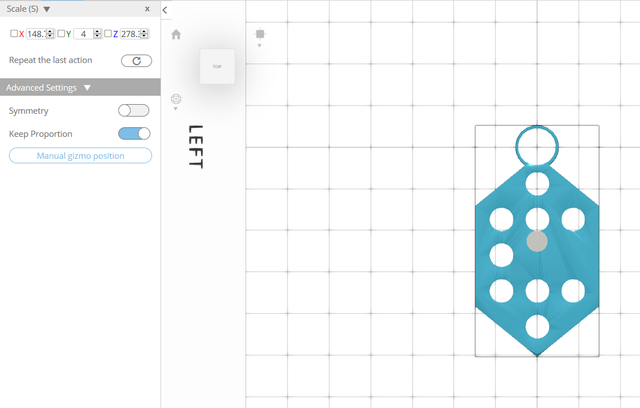

scaling blind

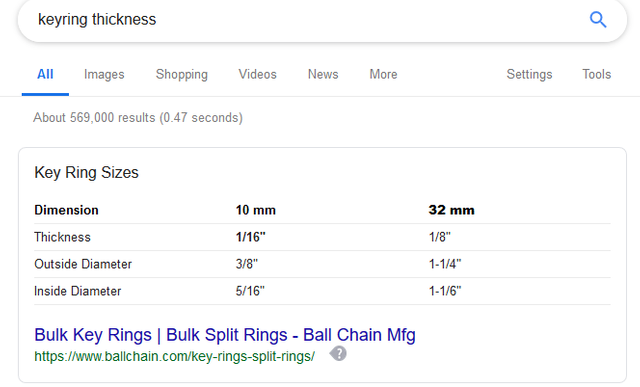

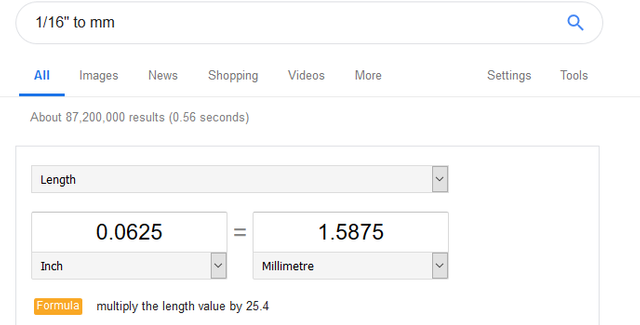

I tried my best to adjust the scale properly, but without a printer, or a ruler at home, I can't be absolutely sure.

After some mental experimentation (I want that printeeeeeeeeer sniff), and some more research, I ended up with 2.5 mm for the thickness.

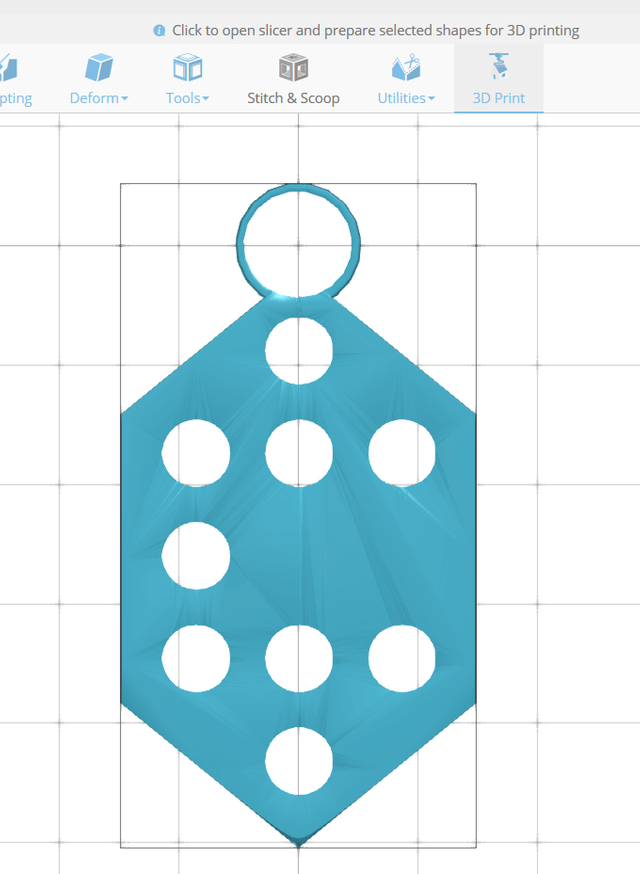

Gcode generator built-in !

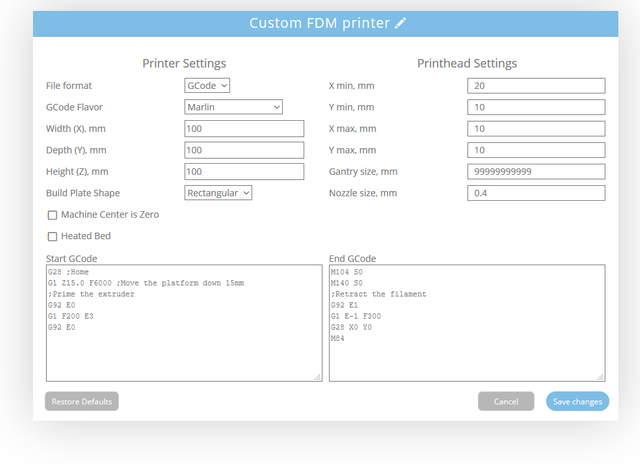

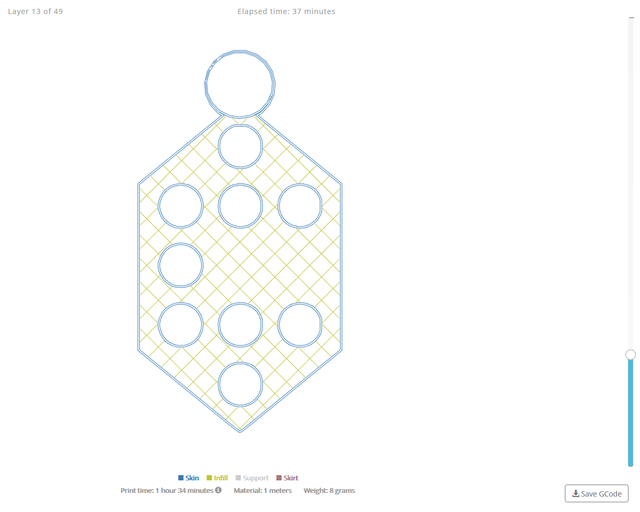

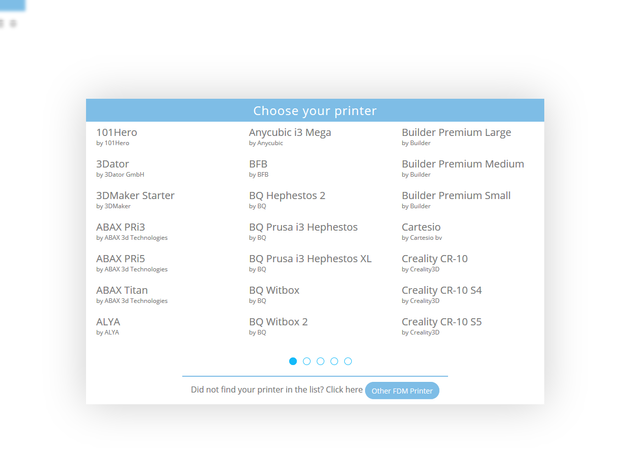

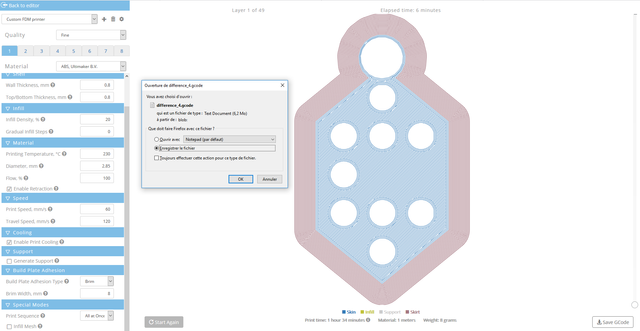

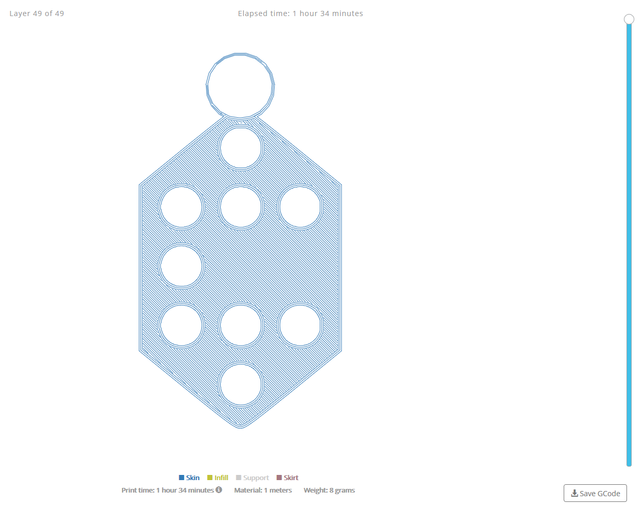

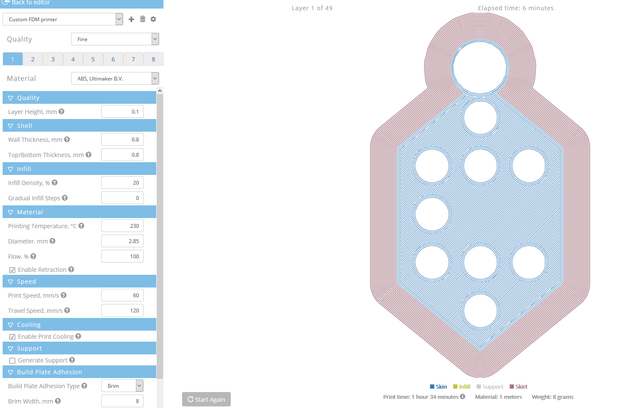

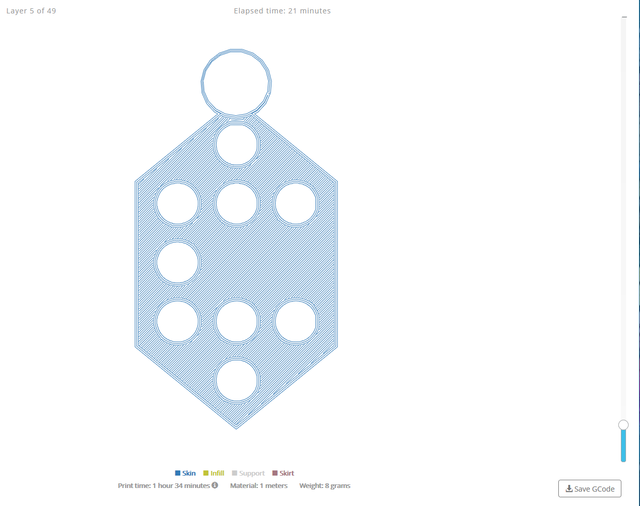

SelfCad also has some 3D printing utilities built-in, like the ability to generate Gcode, the code that a 3d printer reads to determine how to print a file.

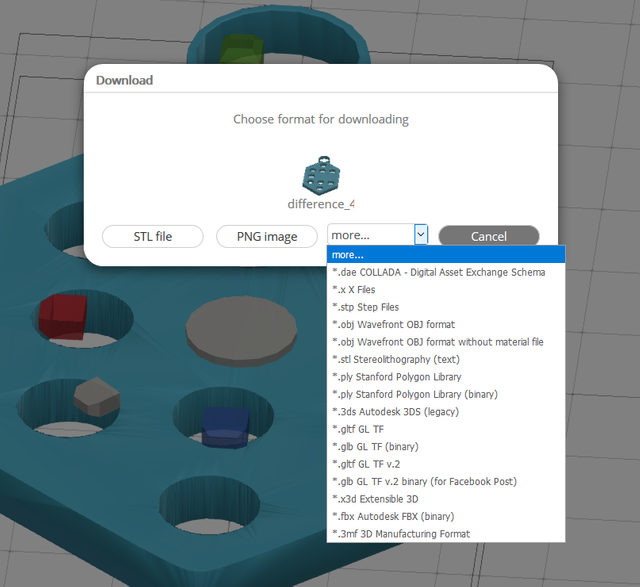

Saving, exporting, etc...

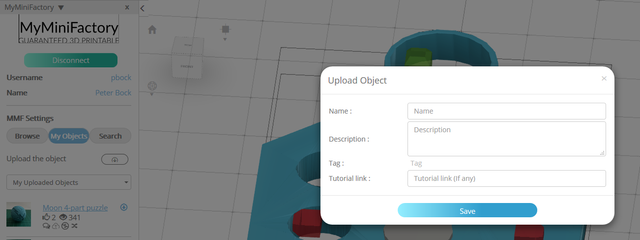

Heres the model on MyMiniFactory and the post on Cent
