3D sndbox cookie cutter + stamp
This is the first SNDBOX cookie cutter and stamp you have ever seen :-D. I was in the mood to make this sndbox cookie cutter with stamp because this will be my last month with @sndbox :-(. I really enjoyed being a @sndbox member and I am not sure how to survive here without @sndbox. I have at least soon my sndbox cookies to replace my tissuebox.
I made a video tutorial of how to design this cookie cutter with stamp but I also have a written tutorial of this 3d SNDBOX cookie cutter + stamp.

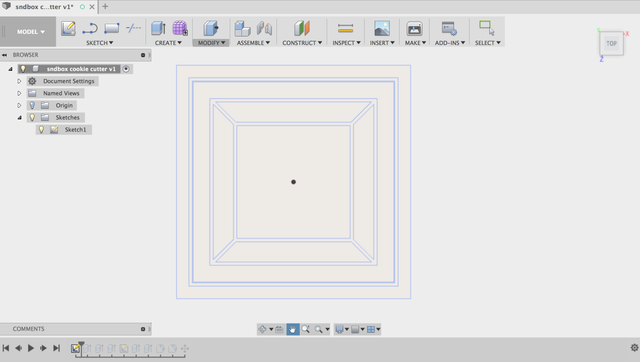

As usual I 3d design using Fusion 360 program that you can download for free. I started making a rectangle for the cookie cutter. I offset the outer rectangle with 2 mm. For the stamp, I offset the rectangle of the cookie cutter with -0.25 mm. Then I made the inner rectangle and the sndbox logo. I trimmed unnecessary lines and extended some lines so the lines will be connected.

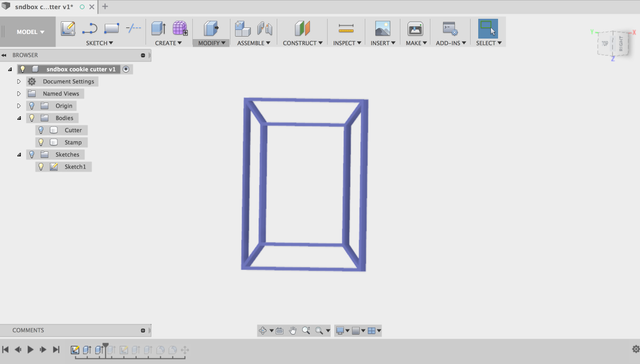

First, I extruded the sndbox logo with 2 mm.

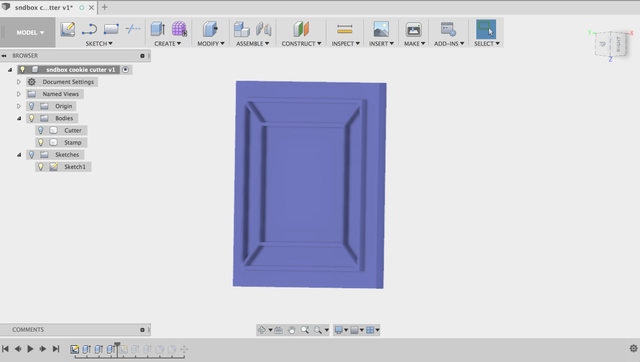

Then for the stamp, I extruded the rectangle with 3 mm and joined the rectangle with the logo.

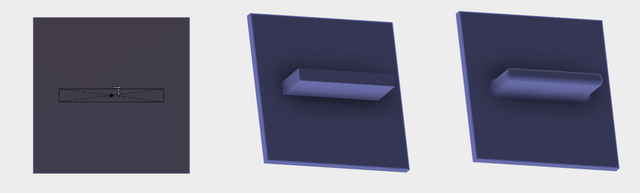

In the centre of the stamp I sketched a rectangle of 4 mm by 50 mm for the holder/grip. Then I extruded it with 15 mm and smoothen the edges using Fillet with 2 mm.

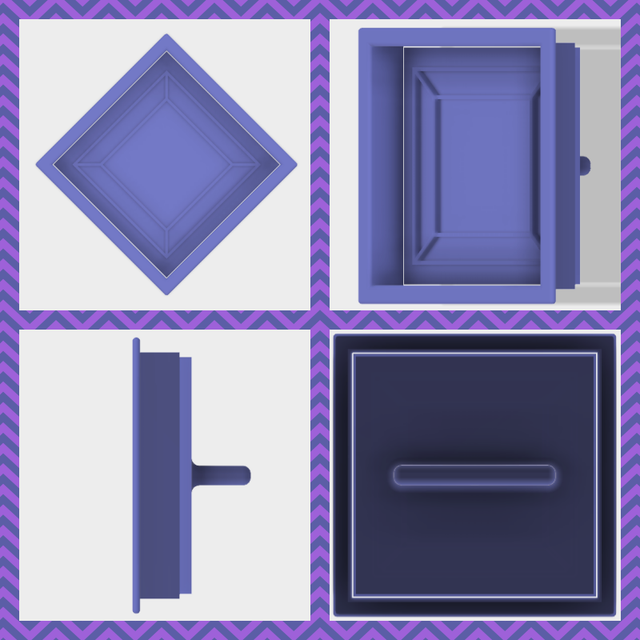

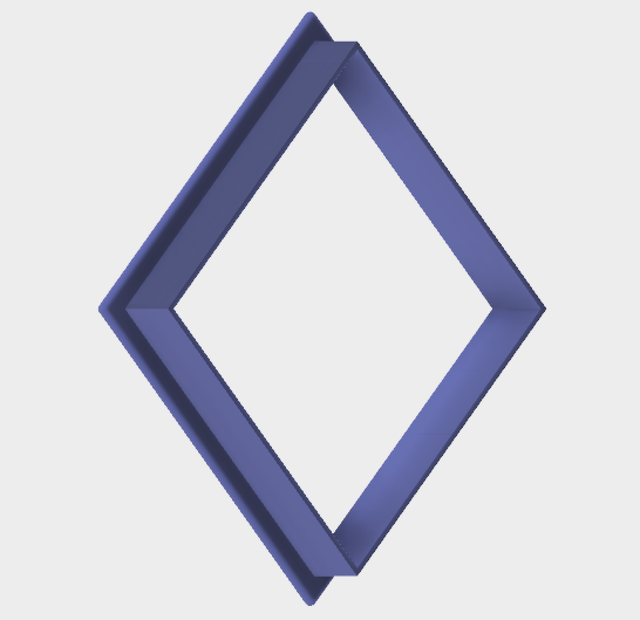

For the cookie cutter, I extruded the inner rectangle first with 10 mm and the outer rectangle with 3 mm and joined them both together.

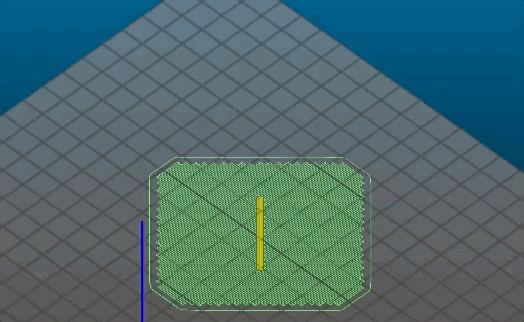

In one of my previous posts, I made a Hello Kitty cookie cutter with stamp and I couldn't figure out how to get the support material also around the holder/grip. This time I found out how to make that change.

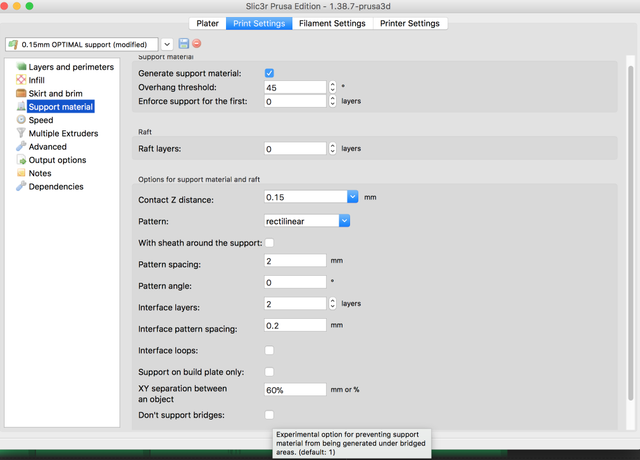

I simply had to uncheck: don't support bridges at Slic3r.
I have the printer on now and it will take couple of hours to print. I think I will take 2 till 3 hours. In my next post I will show you the printed cookie cutter with stamp and the comfort SNDBOX cookies ;-)
