Lately there has been a lot of talk about Margin trading. Especially after one user (Aloha) got margin called on a $11.5 million dollar position. So I decided to do some research on how Margin Calls. THIS IS NOT MY WORK. Got this from

The mechanics of a margin call in Bitshares are currently poorly understood, so I’d like to try to clarify a little by using examples from the USD:BTS market. I think part of the current confusion lies in people talking about the same market but using different market directions, ie. USD:BTS or BTS:USD, so terms like above/below don’t mean the same thing to different people. I will only use USD in these examples, but USD can be replaced by any bit asset in this context. I prefer to use the USD:BTS market direction, so these examples will have prices in BTS/USD.

A margin call is the market forcing you to sell your collateral in order to buy enough USD to close your position. In the USD:BTS market a margin call is equivalent to a bid: it is an order to buy USD for BTS.

A margin call will happen because the price has increased to the point where your collateral is insufficient with respect to the current collateral requirements of the Bitshares market rules. The required collateral is a tuneable parameter in Bitshares, set by the maintenance collateral ratio (MCR) which is maintained by the feed producers (ie. the witnesses).

As mentioned above the call price of a margin position depends on the MCR and the amount of debt and collateral in your position. It is independent of the price feed (settlement price). As an example, say you have opened the following position:

Debt: 10 USD
Collateral: 10000 BTS
MCR is 1.75
The call price of your position is 10000 BTS / (10 * 1.75 USD) = 571.429 BTS/USD.

The collateral ratio depends on the feed price (settlement price). Taking a feed price of 300 BTS/USD and building on the above example with 10 USD debt and 10000 BTS collateral:

CR: (10000 BTS / 300 BTS/USD) / 10 USD = 3.33
When will a margin call happen?
This is where it gets complicated. Margin Call are only possible if the feed price is below your call price. A margin call will happen whenever the squeeze protection price goes above the call price of your position. To better understand how this works, let’s go back to our margin position and look at collateral ratios:

Say we have the following:

Debt: 10 USD
Settlement price: 300 BTS/USD
CR: 1
Collateral is therefore 3000 BTS
This is also known as the Black Swan level, and we want to perform a margin call before the collateral ratio goes this low. This is why we have the Maintenance Collateral Ratio (MCR), to enforce a buffer zone before a position goes into Black Swan territory. So if we apply the MCR of 1.75 to this position:

Debt: 10 USD
Settlement Price: 300 BTS/USD
CR: 1.75
Collateral is therefore 3000 BTS * 1.75 = 5250 BTS
This is much safer, there is a bit of margin for the position to be closed before going into Black Swan levels. Since in our example, the USD requires 1.75 ratio, the call price of this position is now exactly equal to the feed price of 300 BTS/USD.

Call price: 5250 / (10 * 1.75) = 300 BTS/USD
The remaining question then is, at what point should we force the position to attempt to close itself? This is where the SQPR comes in. Let’s look at two scenarios, SQPR of 1.1 and SQPR of 1.5:

** SQPR of 1.1 **

Settlement price: 300 BTS/USD
SQPR: 1.1
Squeeze Protection Price (SQPP): 330 BTS/USD
In this case, any margin position that has a call price below 330 BTS/USD will be forced to settle, and therefore be added to the orderbook as an order to buy USD for BTS.

** SQPR of 1.5 **

Settlement price: 300 BTS/USD
SQPR: 1.5
Squeeze Protection Price (SQPP): 450 BTS/USD
In this case, any margin position that has a call price below 450 BTS/USD will be forced to settle, and therefore be added to the orderbook as an order to buy USD for BTS.

Another way of looking at this is by looking at the Collateral Ratio of the position. If we want to stay at or above the squeeze protection price, what is the required collateral ratio? Let’s do the math:

Settlement Price: 300 BTS/USD
MCR: 1.75
SQPR: 1.1
Debt: 10 USD
Call price: CP = SQPP = 300 * 1.1 = 330 BTS/USD
Collateral = (10 USD * 1.75) * 330 BTS/USD = 5775 BTS
The collateral ratio of this position is (5775 BTS / 300 BTS/USD) / 10 USD = 1.925.

This is equivalent to the MCR

SQPR: 1.75 * 1.1 = 1.925.
In other words, in order to stay safe and not be margin called, the margin position must maintain a collateral ratio higher than MCR * SQPR.

Safe position: CR > MCR * SQPR
At what price will the margin call execute?
This is the part I believe is most misunderstood, so I will use some screenshots of a fictional USD:BTS market to explain. We will use the following parameters:

SQPR: 1.2
MCR: 1.75
SQPR * MCR: 2.1
Settlement price: 300 BTS/USD
Squeeze protection price: 300 * 1.2 = 360 BTS/USD
Debt: 10 USD
Collateral: 5687.5
CR: 1.896
Call price: 325 BTS/USD
From what we’ve seen above, it’s clear that this position should be margin called: it has a CR of 1.896 which is well below the safe ratio of 2.1.

It will therefore get added to the order book as a bid to buy USD like this:

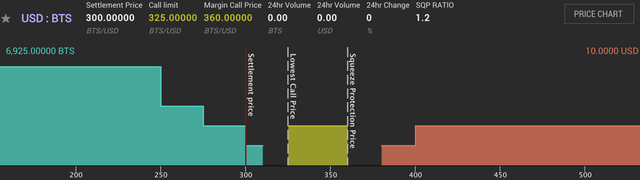

Margin Call Buy Region
The margin called order will buy any USD priced in the range 325-360 BTS/USD. The squeeze protection price acts as a price ceiling, meaning the forced margin order will not execute at a very high price in an illiquid market: it is protected from high prices by the SQPR.

Margin calls only execute in the range [Call Price - SQPP]
A margin call will occur any time the lowest ask is higher than the call price and lower than the SQPP. This has several consequences, as we will see below. It can create some very strange situations, and also force the margin called orders to “buy high”.

Consequence #1: Asks below the call price prevent margin calls from executing

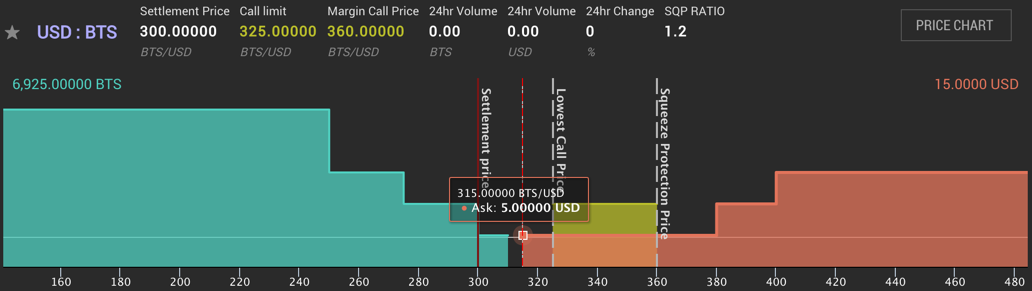

Because margin calls only execute in the range Call Price - SQPP, if there is a sell order for 5 USD at 315 BTS/USD in this market, the call order will not use it, which makes the market look like this:


Margin Calls can't buy cheap

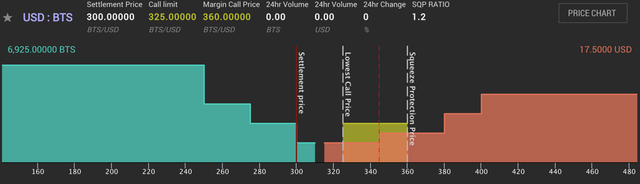

If a second sell order of 2.5 USD were added at 345 BTS/USD, the margin called order would still not buy any USD because of the “blocking” sell order at 315 BTS/USD:


Margin Calls can't buy cheap

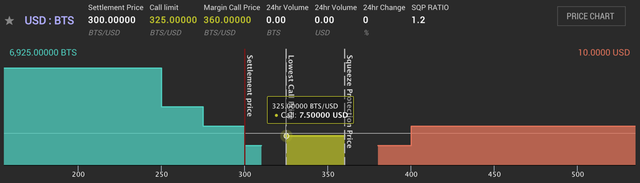

If the order at 315 BTS/USD were to be removed, either from being cancelled or from being filled, the order at 345 BTS/USD would instantly get filled by the margin called order, and the margin called position would have a reduced debt of 10 - 2.5 = 7.5 USD:


Margin Call executes
Consequence #2: Margin calls cannot “buy cheap” As we’ve seen above, unless the settlement price goes above the call price of the position, forced margin calls always buy at a premium relative to the settlement price. Even if there are sell orders available at or near the feed price, the margin called orders will not be matched with those sell orders if their call price is higher than the price of those sell orders.
