HIGH Quality LOW Weight Rig frame Project for mining
MM Rig Frameworks
My name is Max Darryl i'm 24 years and living in The Netherlands. Me and my brother Mike started this topic to get our project off the ground. This is also where the "MM" in the brandname comes from. I worked several years in the technical wholesale industry where i gained my technical knowlegde. The knowlegde that we now want to use to create our own product in the mining/ICT industy.
In the beginning of 2017 we started thinking of building our own mining rig using 6 GPU's, 1 ATX motherboard, 1 ATX powersupply, 6 Rizer card and 1 SSD.
We found all the electrical components that we needed for the mining rig. The only thing missing was a decent frame to mount the electrical parts on. We found different frames in the pricerange $90,00 til $170,00 so we decided to buy a frame for $140,00. A week later we received the box with the frame in it. Ones we opened the box we immediatly thought that it was a joke. The value from the received frame was far away from the $140,00 that we paid. The Frame wasn't very stabile and we could't tighten any nut or bolt because it was all together clicked with some socket pieces.

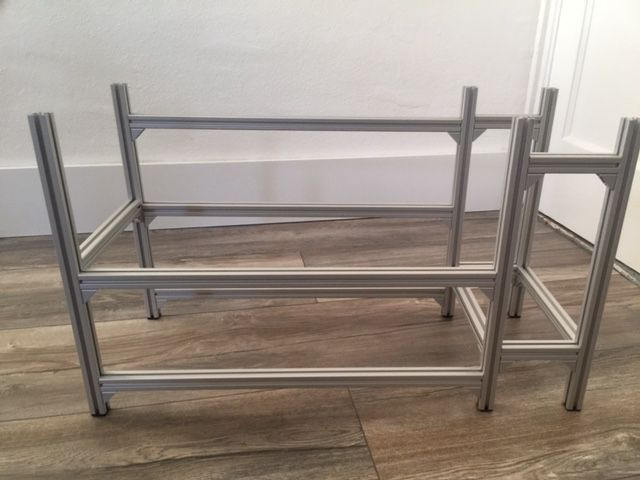

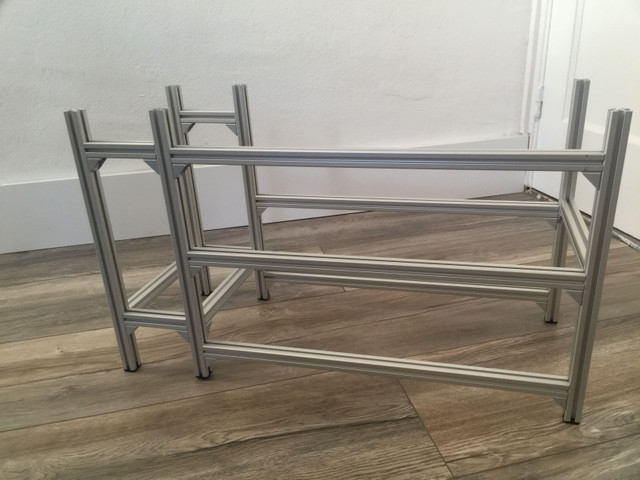

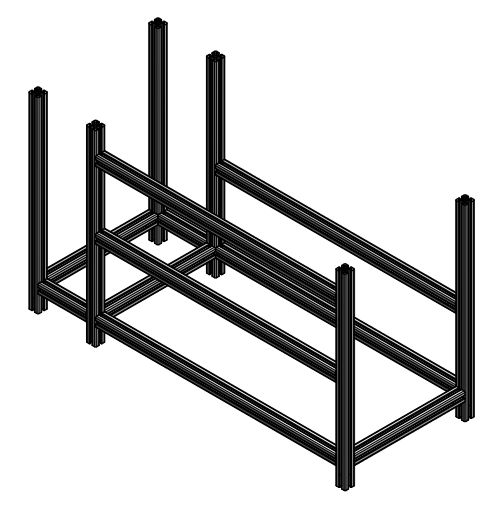

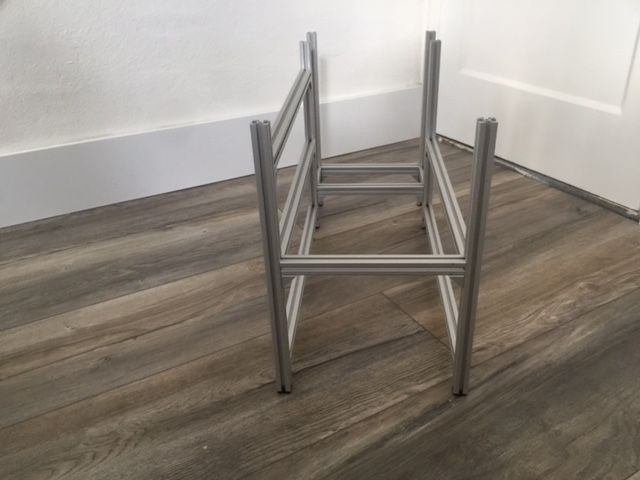

We didn't wanted to use this frame so we decided to build our own. I contacted some suppliers that i know from the wholesale to order some Aluminium profile that we wanted to use. After weeks of drawing models and sketches we finished our first prototype frame. This protoype was a lot stronger then the frame that we bought for a webshop. We calculated the cost of the frame and concluded that we made a much better frame for less money. The frame that we designed had profile that can easy be adjusted with the wrench we deliver with the frames. This we the frame always suits the GPU cards that you want to use. With the option of adjusting the profile's height it is even possible to mount extra cooling fans in front
Our vision is to produce HIGH quality LOW weight rig or super computer frame for a competitive price.
First we will distribute our "Standard" frame that is designed with the following specifications:
Standard Frame:
- Maximum of 6 Graphics Cards
- Maximum of 6 PCI-e Rizer card
- 1 ATX Motherboard
- 1 ATX powersupply
- multiple SSD's or HDD's
Size (LxWxH) 660x270x390mm
Because we have designed our frames modular it is even possible to stack multiple "standard" frames on each other and connecting them with our frame connector kit.
We are developing other sizes of frame that we will take in our program:
- Tower 2
Size (LxWxH) 660x270x780mm - Tower 3
Size (LxWxH) 660x270x1170mm - Tower 4
Size (LxWxH) 660x270x1560mm - City 4
Size (LxWxH) 1320x540x780mm
We will specialize our brand in producing custom frames on request. If the customer give us the specifications of which components he wants to use we can create a custom frame for it.
Let us know what u think. If you liked it or want some more information please upvote then.
