CR1616 Battery Equivalent, Applications and Datasheet

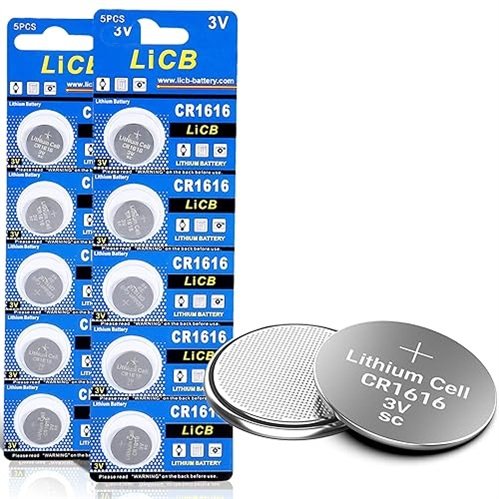

Introduction to CR1616 3V Battery

The CR1616 is a compact coin cell lithium battery widely used in small electronics. It operates at 3 volts and is commonly found in watches, calculators, and certain medical instruments like digital thermometers.
●The prefix “CR” denotes a lithium manganese dioxide chemistry, which is non-rechargeable.
●The number 1616 specifies its size: 16 mm diameter and 1.6 mm thickness.

CR1616 Battery Dimensions

The CR1616 battery measures 16 mm across and 1.6 mm thick.
CR1616 Parameters
Below is a summary of the size specifications for the CR1616 3V battery:
(table omitted – same as original for clarity)

Applications

CR1616 batteries are widely used in:
●Watches
●Calculators
●Remote controls
●Medical devices
●LED lights
●Children’s toys
Safety Note: Since the CR1616 is often used in kids’ toys, ensure children do not accidentally swallow it.

CR1616 Battery Equivalents

The CR1616 is a small lithium coin cell. Its equivalents include:
BR1616, LM1616, DL1616, ECR1616, DL1616B, CR1616-1W, KCR1616, 5021LC, 280-209, L11, and L28.
These can serve as direct replacements if the original CR1616 is unavailable.
Common Equivalent Models
●DL1616 (Duracell) – 3V lithium, interchangeable with CR1616, widely used in calculators and car remotes.
●ECR1616 (Energizer) – 3V lithium, compatible in size and specs, provides long-lasting power.
●BR1616 (Panasonic) – 2.8V lithium carbon fluoride chemistry, slightly lower voltage, suited for devices requiring that specification.
●280-209 (Generic) – Equivalent spec battery, often cross-referenced with CR1616.
●DL1616B (Duracell) – A variant optimized for higher pulse current demands.
●CR1616-1W (Various) – A welded-tab version designed for PCB mounting.
●LM1616 (Maxell) – Standard 3V lithium cell, used in devices requiring CR1616 specs.
●KCR1616 (Kodak) – Kodak’s branded version, interchangeable with CR1616.
●5021LC, L11, L28 (Generic) – Other codes used by manufacturers for batteries matching CR1616’s dimensions and electrical profile.

CR1616 Battery Manufacturers

●Energizer CR1616 (ECR1616): Reliable, long shelf life, wide temperature tolerance.
●Duracell CR1616 (DL1616): Trusted alternative, widely used in consumer electronics.
●Sony CR1616: High-quality coin cell option, same dimensions and performance.
●Maxell CR1616: Known for durability and stable output, often used in watches.

CR1616 Datasheets

Datasheets are available from major manufacturers to compare specs and ensure compatibility:
●Energizer CR1616 Datasheet
●Maxell CR1616 Datasheet
●Panasonic CR1616 Datasheet

FAQ

1. What batteries are compatible with CR1616?
   Equivalents include: BR1616, DL1616, LM1616, ECR1616, DL1616B, CR1616-1W, KCR1616, 5021LC, 280-209, L11, and L28.
2. Can I use a CR1632 instead of a CR1616?
   No. Although both provide 3V, the CR1632 is thicker (3.2 mm vs. 1.6 mm) and may not fit devices designed for the CR1616.
3. Can I replace CR1616 with CR1620?
   Not recommended. The CR1620 is 2.0 mm thick, which may cause fit issues or device malfunction.
4. How long do CR1616 batteries last?
   Shelf life: 10+ years unused.
   Low-power devices (watches, calculators): several years of operation.
   Higher-drain devices (medical or fitness trackers): may need replacement within 1–2 years.
