Delicious Ancient Egypt (Fusion 360 tutorial + 3D printing/ part 1)
I made once a 3D Egyptian pyramid that supposed to be a lip balm and body butter container. When I printed it out, it failed at the opening. So I got the inspiration to make this delicious ancient Egypt from my 3D Egyptian pyramid that I made before.
This Delicious Ancient Egypt has the symbols that I thought was interesting to add:
Nefertiti
Eye of Horus
Ankh
Serpent's head
Camel
Some triangles (pyramids)
Tutorial (Fusion 360)

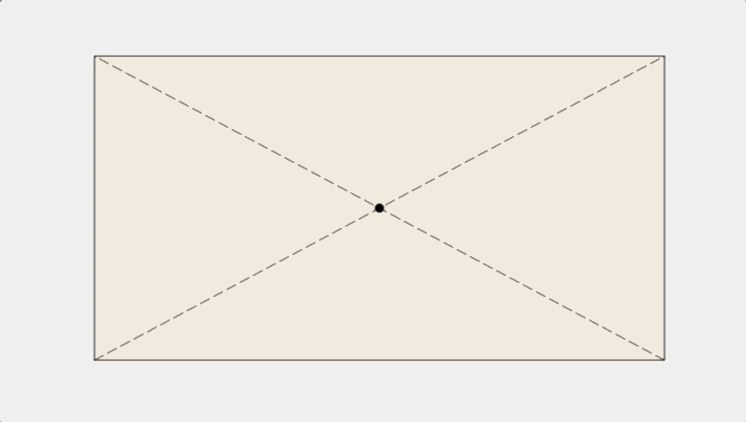

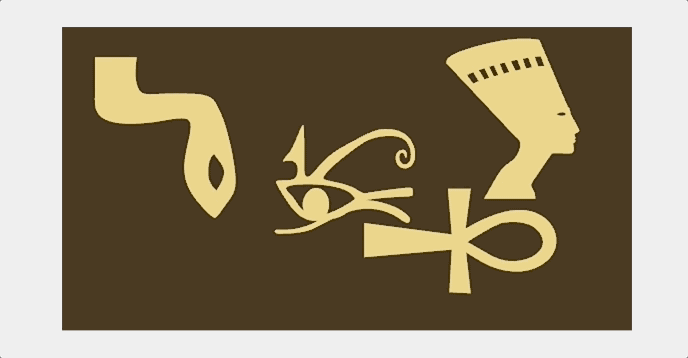

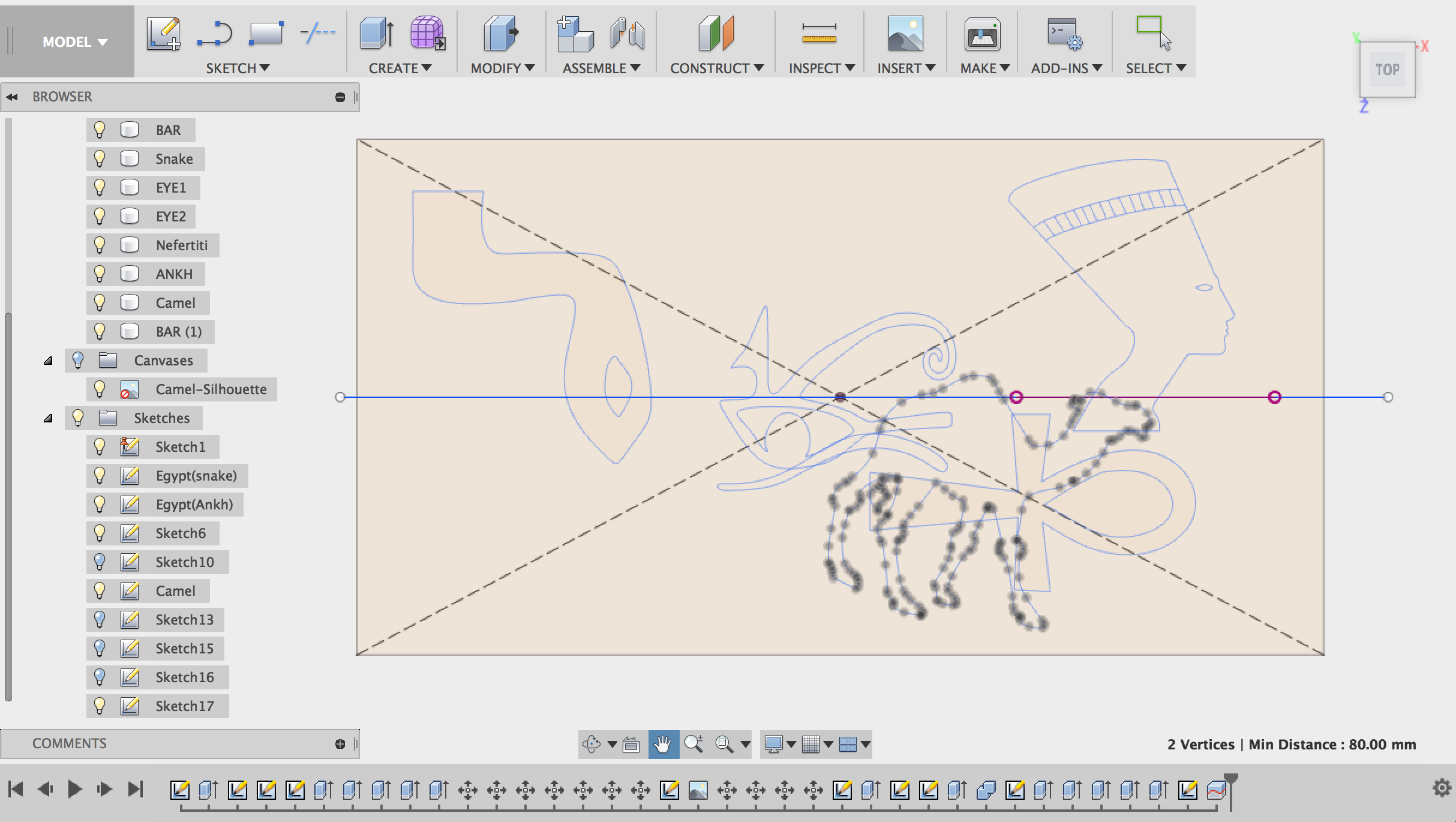

I sketched a rectangle of 15 x 8 cm. I inserted the 4 DXF files from my previous design that I posted before (3D Egyptian pyramid lip balm + Bodybutter container). So inserted the Nefertiti, Ankh, Eye of Horus and Serpent's Head. The Camel came later as I had to find a camel image from the internet and traced the camel with Spline. Tracing the camel took me 30 minutes... :-(

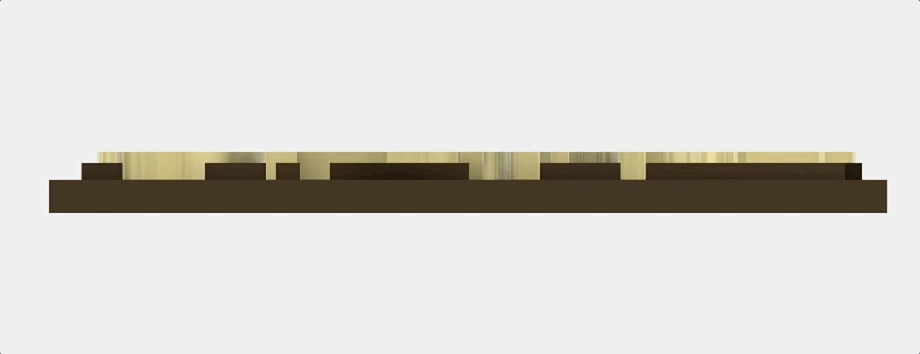

The rectangle I extruded with 6 mm. The sketched symbols I extruded with 5 mm thick. They were not at the place I wanted to have them yet.

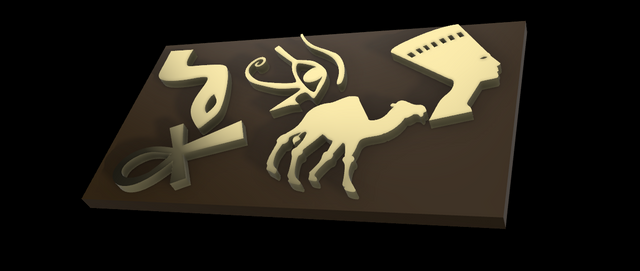

Here I moved the symbols at the place I wanted and added the camel. I did them randomly without any order.
It looks nice already but I missed a WOW factor that would spice it up MORE.

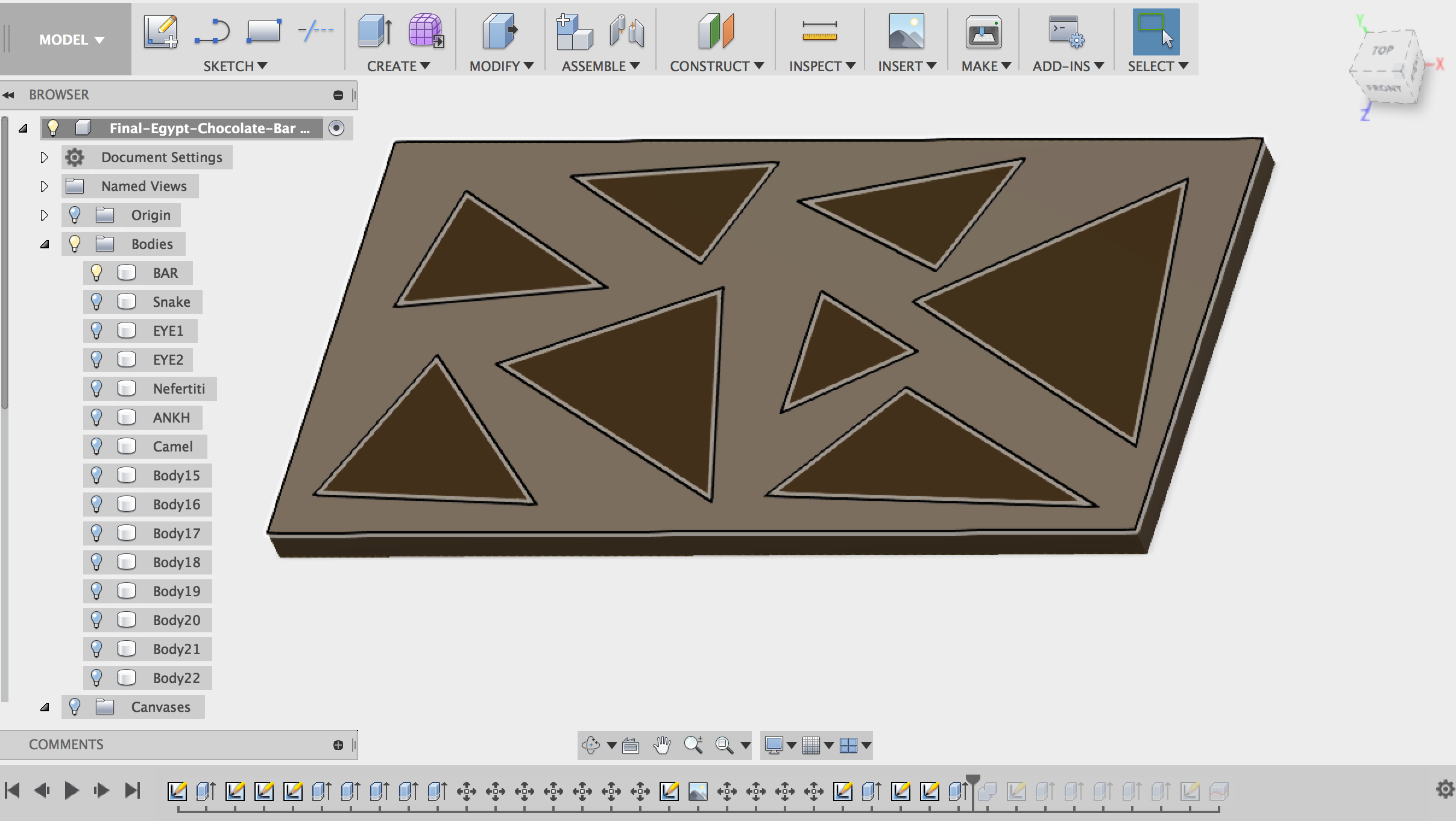

I decided to sketch some triangles that represents the pyramids. Not they look exactly like the pyramids, but that's okay.
Sometimes we need to change things to give it our own twist ;-).

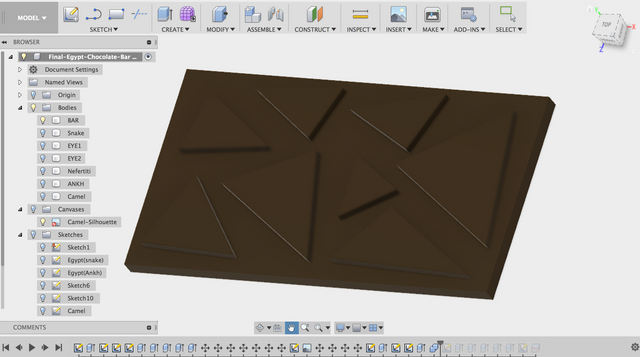

I hided the symbols and extruded the sketched triangles with 5 mm operation Join.
It looks much better now BUT there was one little detail missing.

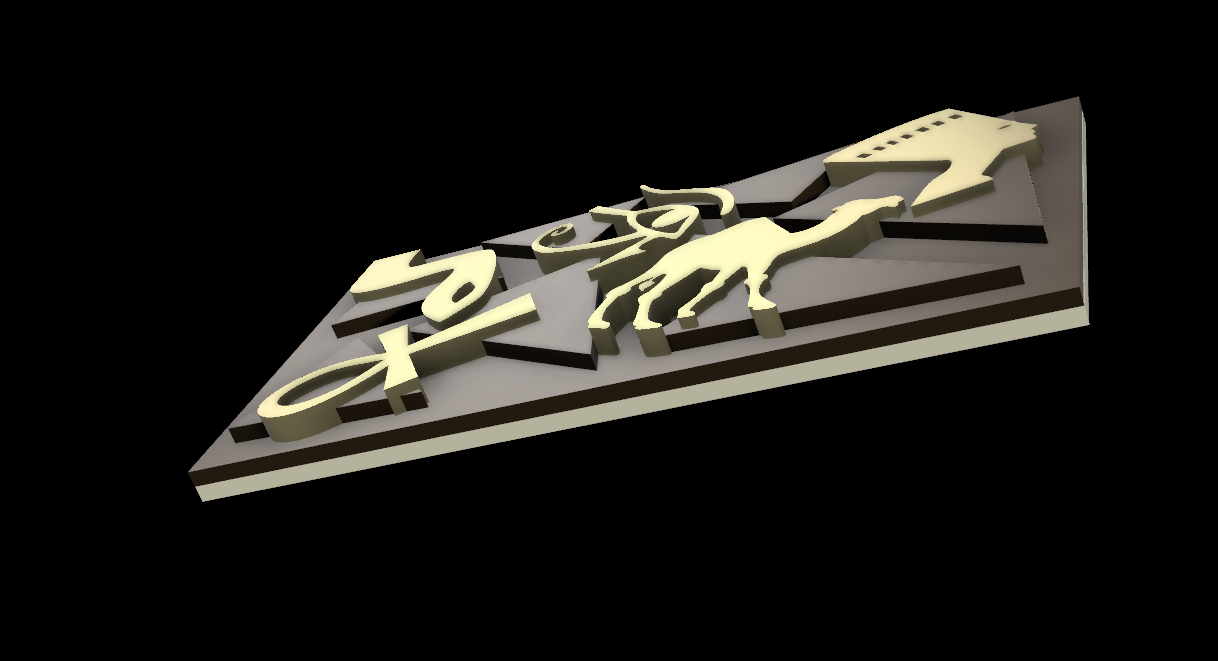

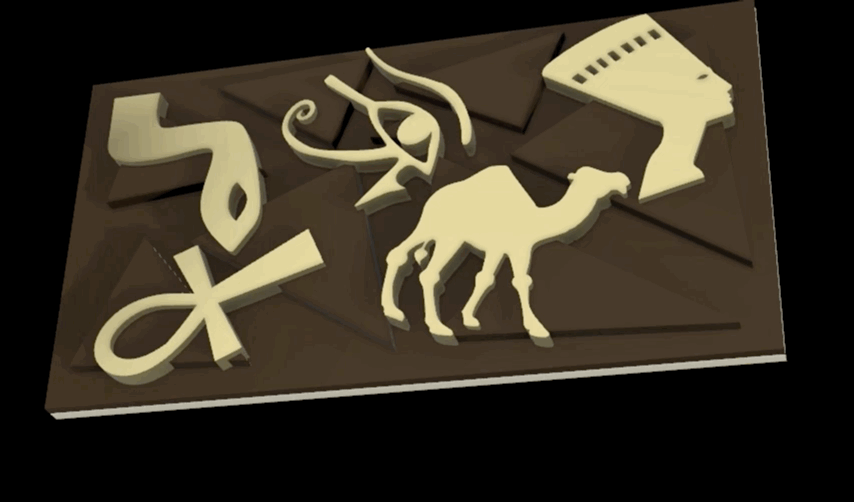

I sketched a line on the side and split it ( Split Body) and change the appearance in white cream colour.

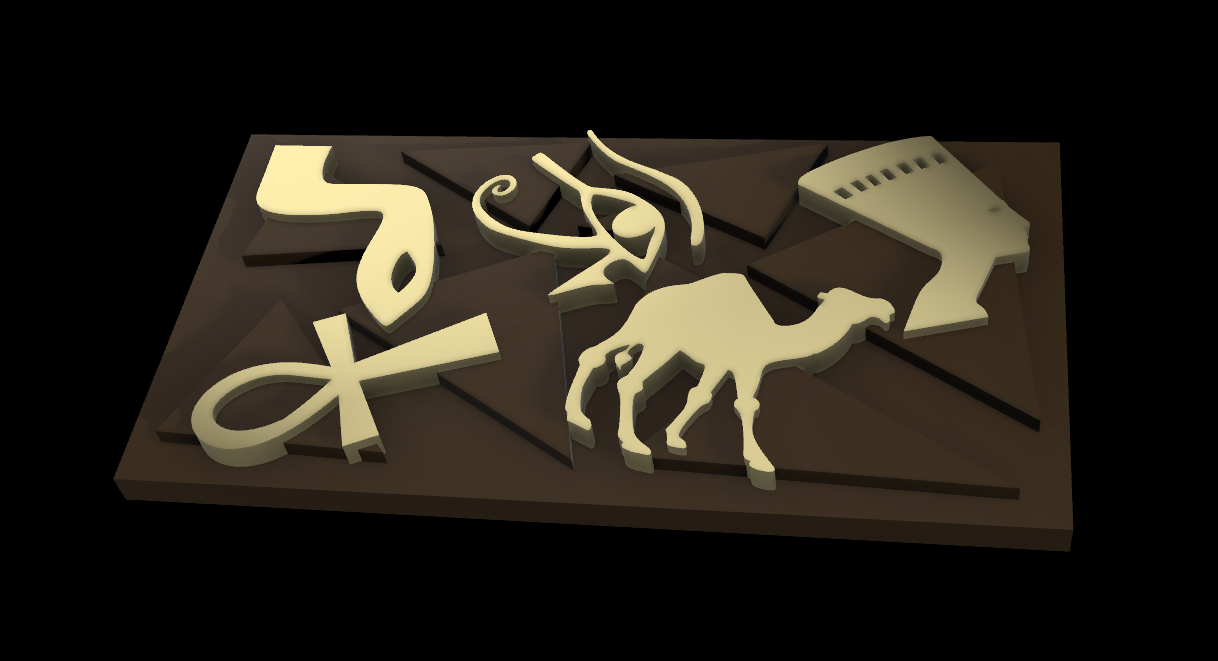

Now it has 3 colours. When printing it needs to be of course 1 body. This is just for rendering. I combined everything, including the symbols.

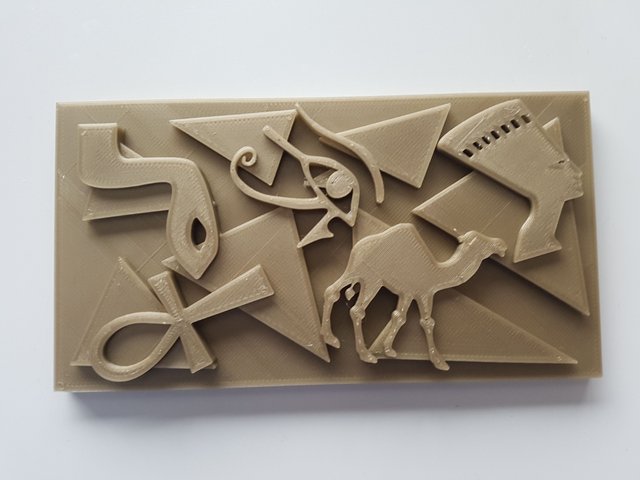

3D Printing
I forgot to make a GIF of the printing process because I turned on the 3D printer at the moment I wanted to go to bed. :-(. Printing time was 5 hours 35 minutes. I didn't sleep good with the 3d printer on. I closed all doors but I still could hear the noise. That's very often the case when you are a light sleeper like me. :-(
See you in my next post, part 2!
