[DIY] Panel LED

in #arduino • 7 years ago (edited)

componentes necesarios.jpg

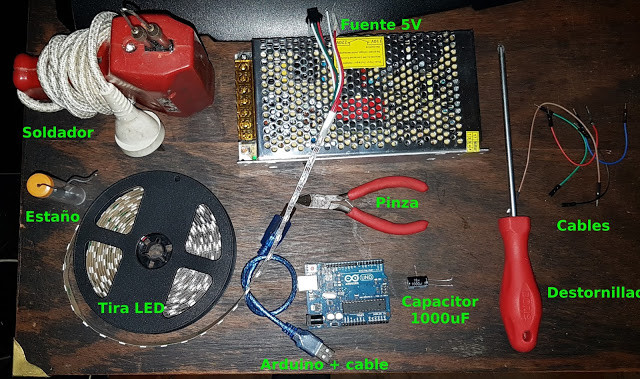

COMPONENTS REQUIRED:
_WS2812B 5050 RGB LED Strip 5M 300 Leds Individual Addressable 5V Arduino uno
_Switch Power Supply Driver Adapter LED Strip Light DC 5V 20A

TOOLS:
_Soldering
_Screwdriver

_OPTIONAL:

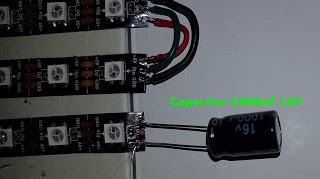

_capacitor 1000uf

I use Adafruit_NeoPixel library, you need install this.

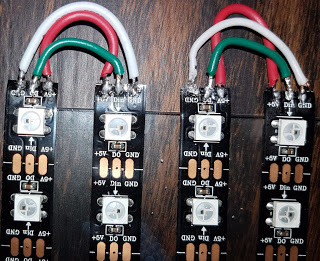

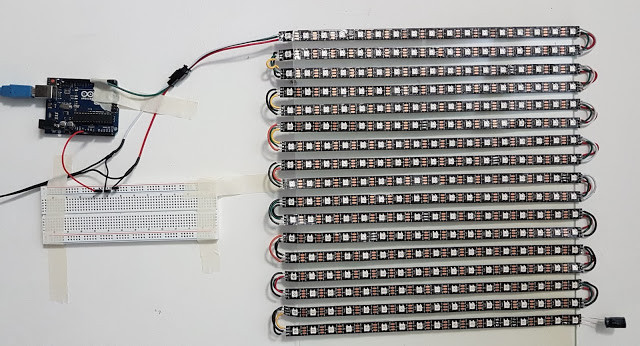

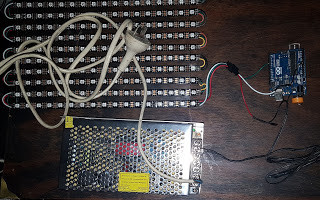

Step 1: Make a Panel

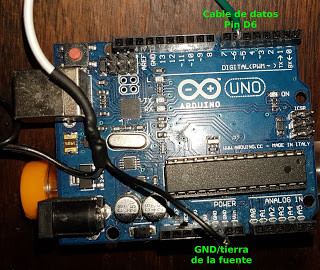

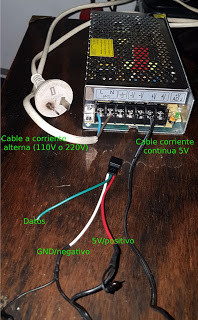

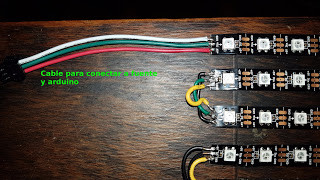

Step 2: Conections

Step 3: Code Time: Defaultest

This is the strandtest of Adafruit_NeoPixel library
https://github.com/adafruit/Adafruit_NeoPixel/tree/master/examples/strandtest

#leds #panel #technology #light
