3D ARCHITECTURAL PROJECT #1
Hey Steemians,
So I have chosen one of my projects that I have done to showcase some of my architectural work.
I was contacted by a local Architectural firm in Cape Town who had a project that they wanted my involvement in, their client was in Africa and what the aim was to create a an architectural blank canvas as the Architecture was the focal point. So to this model it is white with blue glass for contrast.
Attention to detail was given with a mandate of accuracy of 10mm across the model. This project took me 2 days to complete and had many challenges. The plans provided were incomplete, there was on section (a drawing cutting through the house to expose internal heights and measurements) 2 elevations (side and front view of the completed house) and 5 floor plans one for each floor of the building including the roof.

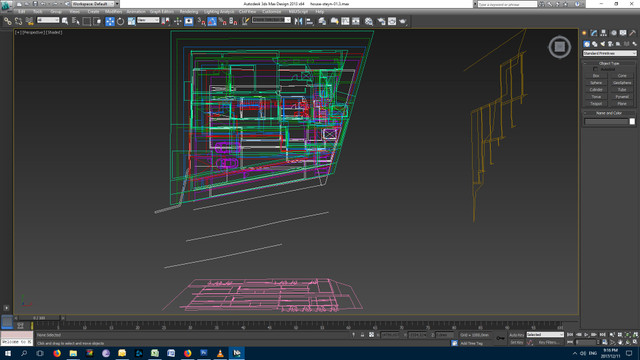

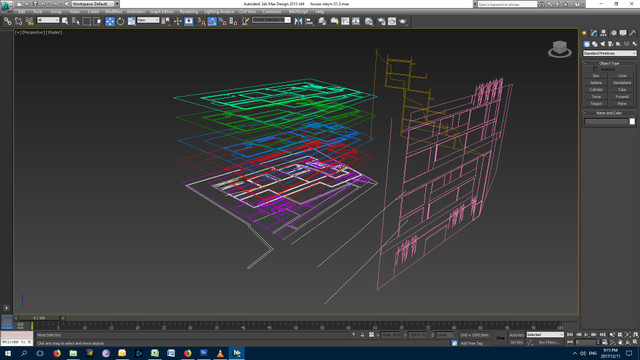

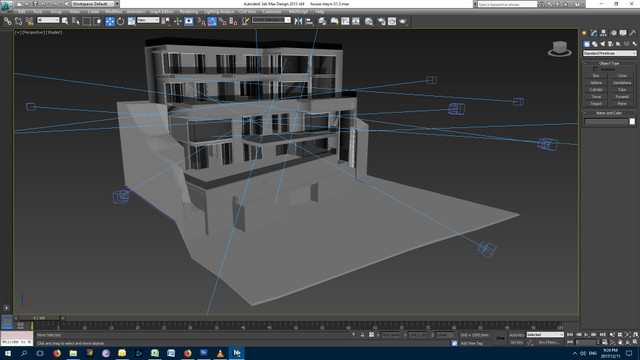

From this I constructed several separate layers in AutoCAD and split the section and 2 elevations. This was then imported into 3DS MAX. Below are 2 images of the base layers and elevations/section.
(
)
(
)

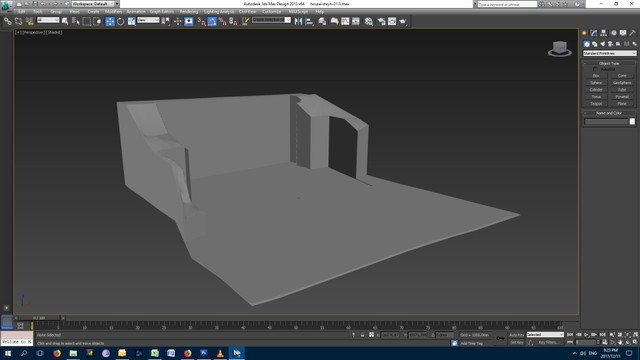

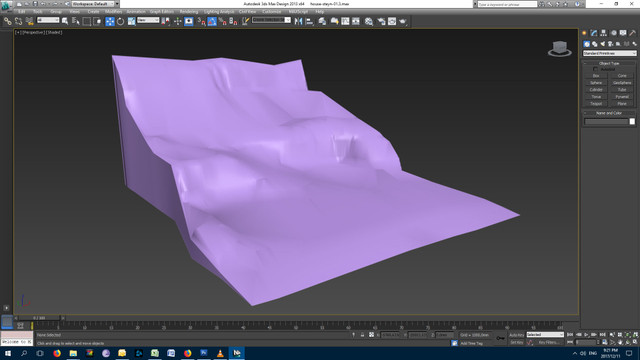

Next I modeled the site (actual ground) the deformation and depression to match what was on site, the soil was to be excavated(take away) in the 3D environment to show scale.
(
)
(
)
From this point all floors were built showing the Architecture of the building.
(
)

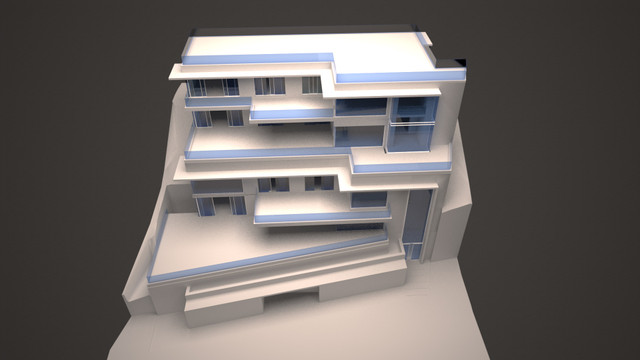

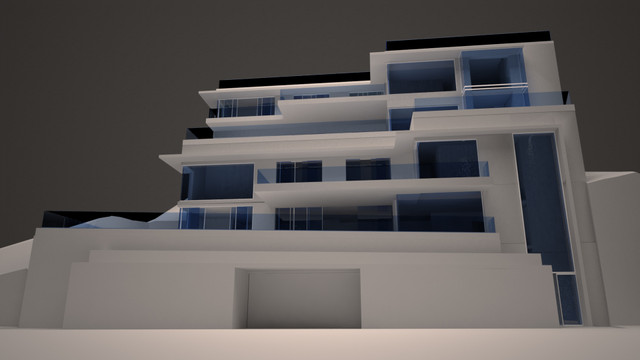

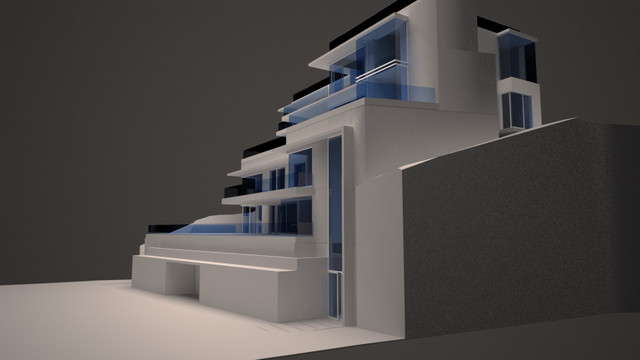

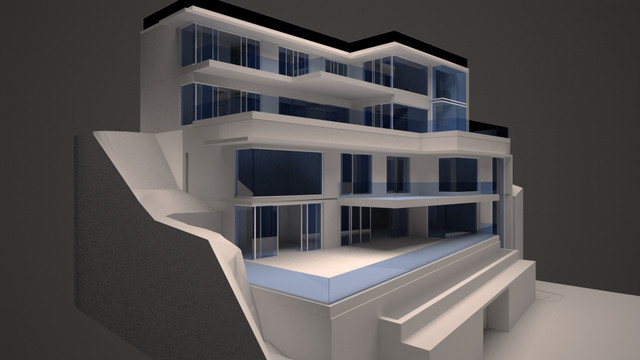

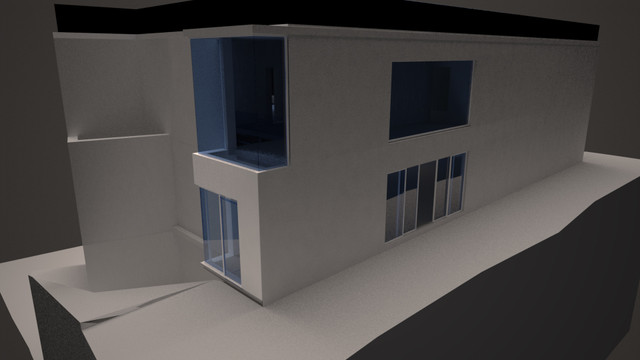

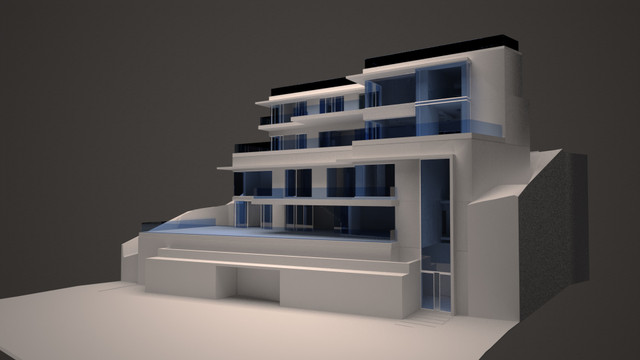

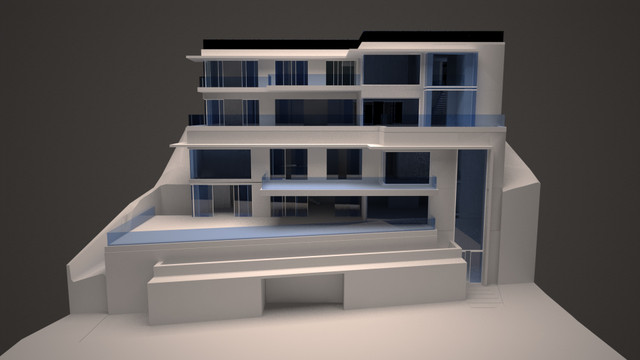

I met the brief and the Architect and client were thrilled with the result, below are some actual renders of the building and the site.
(
)
(
)
(
)
(
)
(
)
(
)
(
)
If you would like to know anything please give me a shout out and I will do the best that I can to respond and answer your questions. :-)
(
)
