CafeSync: System Settings and Theme support

Repository

https://github.com/OpenSeedINC

New Features

System Settings

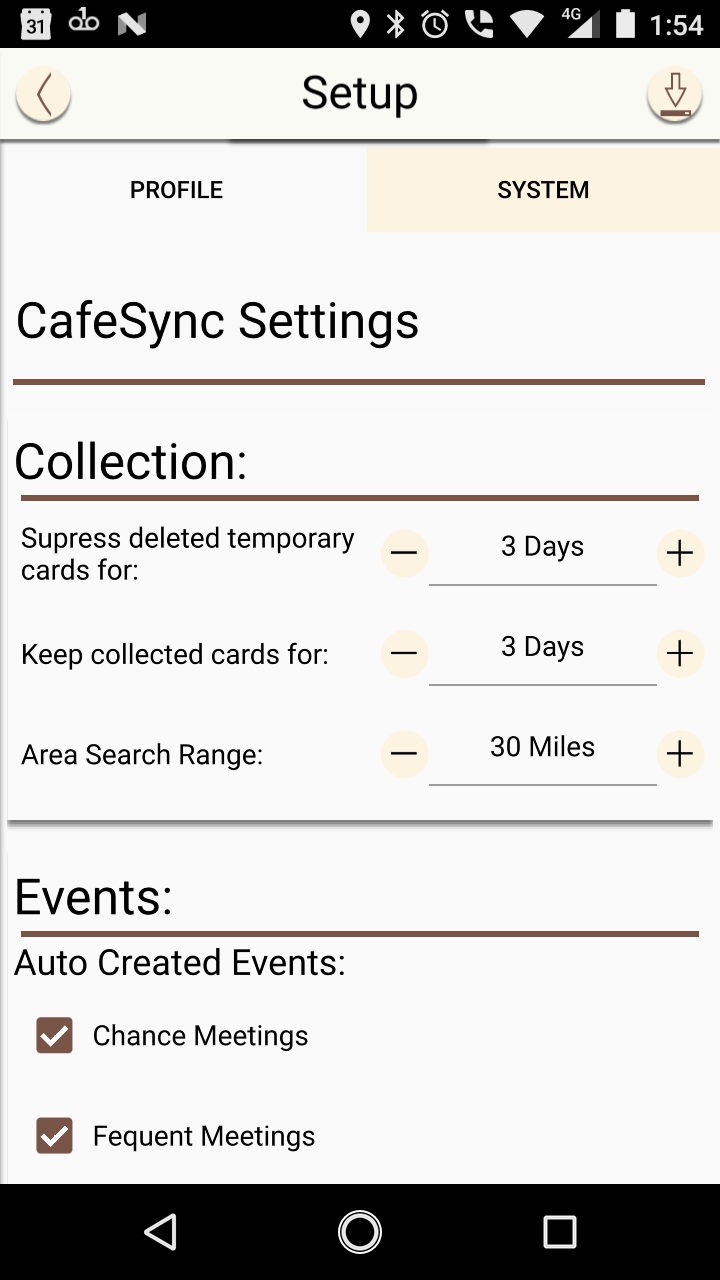

CafeSync, till this release, made assumptions about how a person would interact with the interface. We hard set the amount of days a temporary card would stay on the client (3 Days), The distance the "Area Search" would scan when in that mode (30 miles), and how long a deleted card remained "deleted" even if the user passes by the same person again (1 Day). Though these assumptions are still default the software needed a way to be fine tuned, for and by, the individual. Now they can, within the System Settings dialog:

As you can see from the interface, I didn't stop at Connections but also added event creation options to help the user make the most out of the events system.

Implementation
Pull request 106

For the system settings area I started out by creating the general layout. This was achieved by adding a page toggle element to the top of the interface, shown in the image above. ( reference )

Next using the Profile area as a guide I created the needed columns and rows to build the interface. ( Interface layout )

With the interface complete it was time to link the front end with the back, for this I first had to add the needed database table and ensure that it loads with the rest of the users settings before anything else happens. For this reason I added the next lines of code to the "card_Load" function in main.js under the table name of Settings. Though a bit ugly I took the time to make sure that if these databases didn't exist yet, that they would be filled with the defaults the system already had in place. ( reference )

Once the database had been created I then had to create a function to take note of the chances found in the interface and relay them back to the database, and at the same time ensuring that the new data was reflected in the program. This work is done in the save_Settings function found at the very end of the main.js file. reference

Back in the Setup.qml file the function is called on any event that changed the values of the settings with code similar to this.

   onValueChanged: {if(settingFlick.visible == true) {
                            sT = value;
                            Scripts.save_setting("tempSupress",sT);
}

Theme Support

Themes have been a mainstay in applications for a very long time. Though mostly implemented in CafeSync it is now much easier to switch between them. In future releases we will have the ability to download new themes as well as changing the ones installed if there is a need. To test the theme setup I created three themes that are distributed in this release.

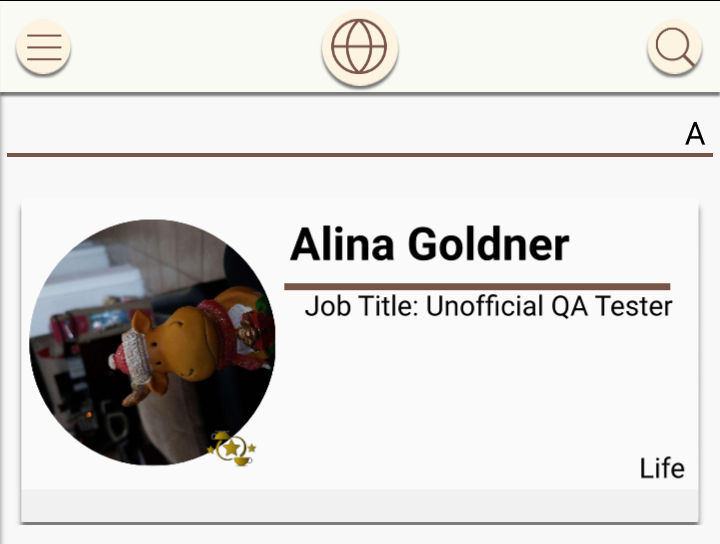

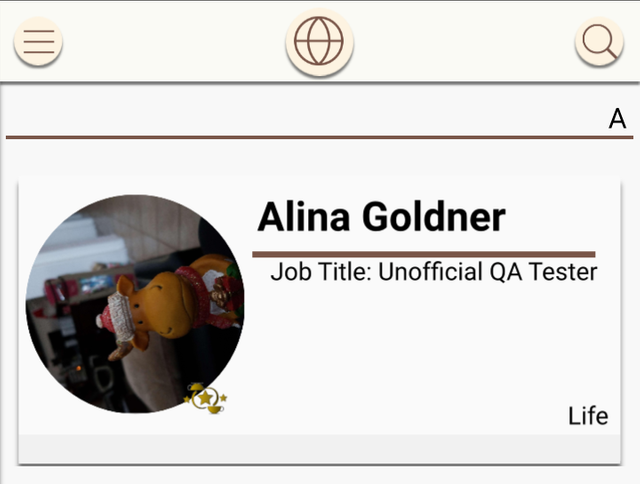

Default

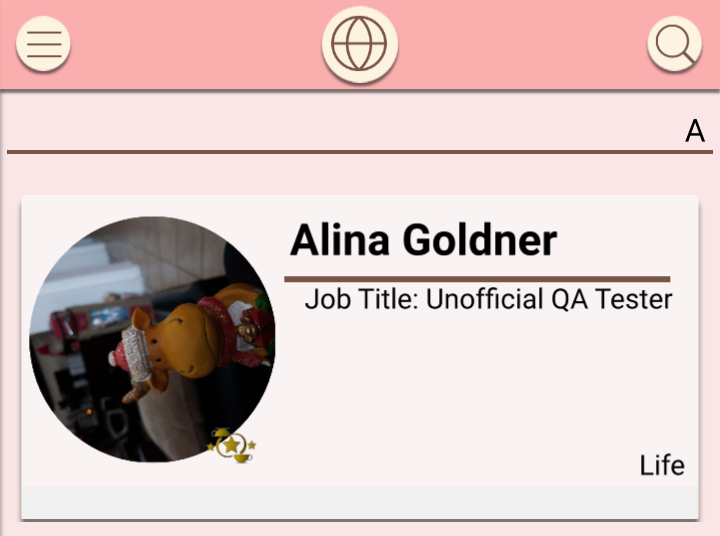

Pink

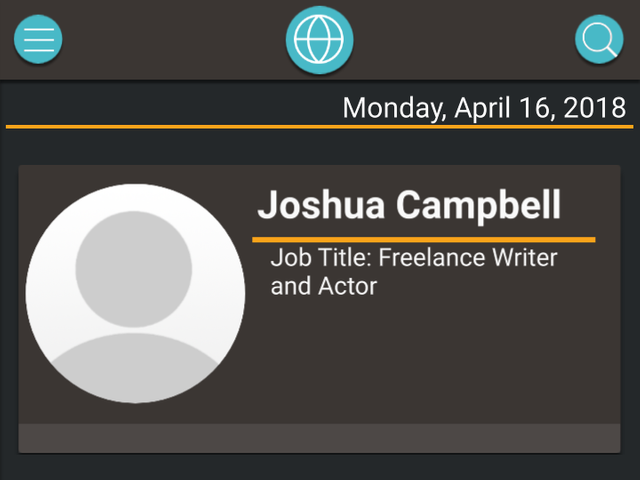

PoP!

Implementation
Pull request 106

Having already built most of the interface for the system settings area, I added the lof (Look and Feel) item to the bottom of that Item. reference

It is a very simple ListView setup, however I would like to point out the use of the same "save_Settings" function as before in the lines near the bottom of the element.

MouseArea {
                        anchors.fill: parent
                        onClicked: {theme = index;Scripts.save_setting("theme",index);
                        }
}

With the interface setup we needed to link these settings with the database once more. This time creating a "Themes" table and populating it with the values for the three included themes. ( reference ) Please take note of how I have setup a similar "check" for the themes as I did for settings. If there is no theme set, or if the theme doesn't exist in the database the default hard-coded theme is used.

Once the code was verified working I went through the project to make sure that most if not all the elements used the new theme and looked at "home" in all three themes. This amounted to adding one or two lines of code, in almost every file, where the theme was not yet enabled.

Find out more

Curious about CafeSync and what it does? Check out my other posts here on Utopian and/or SteemIt
